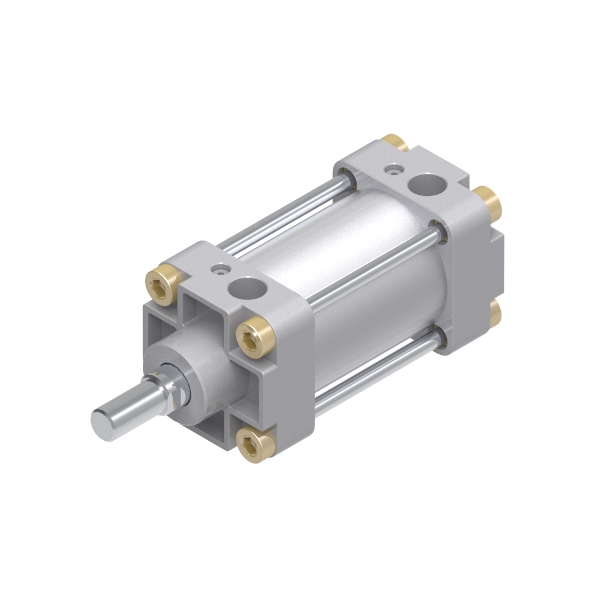

Tie Rod Pneumatic Cylinder

Single Rod Type - WA Series

Bore ø40~150
Features
High Quality, Long Life
Smooth acting at both high & low speed
Wide variety of mountings
Adjustable cushion at both ends
Magnet type is available for sensors

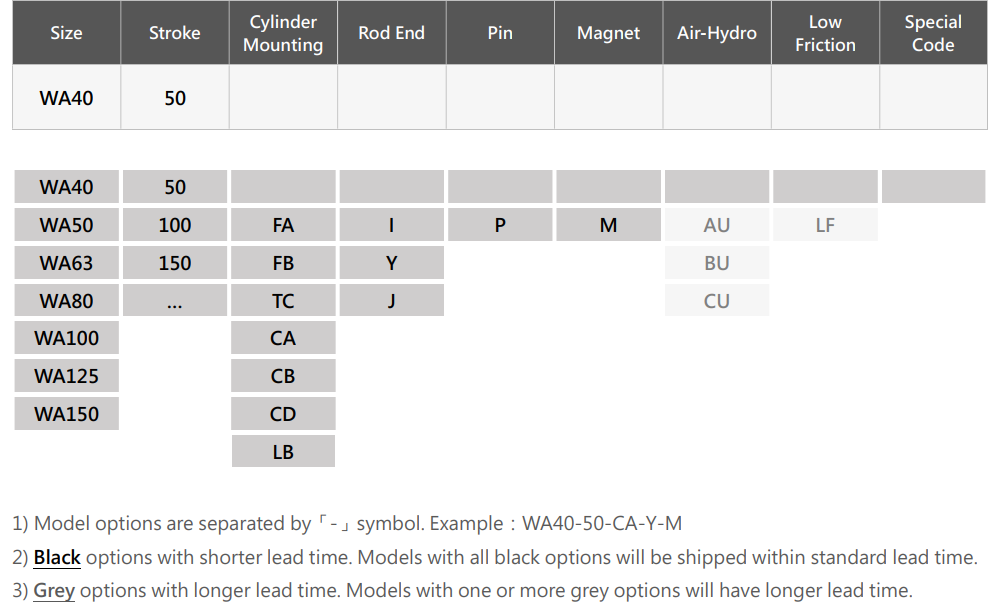

Add Inquiry (0) Order Code - WA

Technical Data

Product Series WA Series
Cylinder Bore mm 40 50 63 80 100 125 150
Max. Stroke mm 1000 1500
Standard Stroke mm 25, 50, 75 ... 300
Fluid - Compressed Air – Filtered & Lubricated
Operating Pressure kg/cm2 1 ~ 10
Ambient Temperature ℃ -20 ~ +80
Sensor - Magnetic Switch


Dimensions

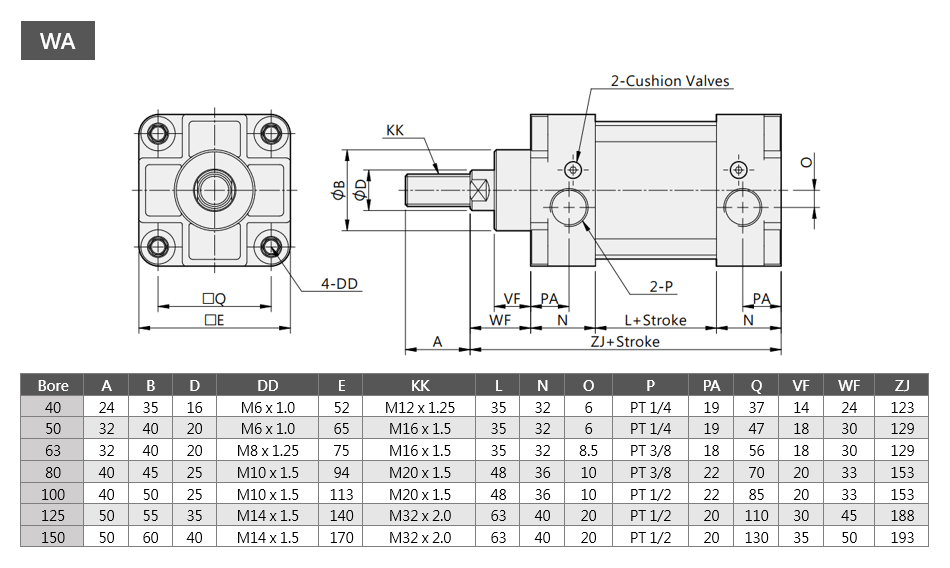

Tie Rod Cylinder WA Series Dimensions

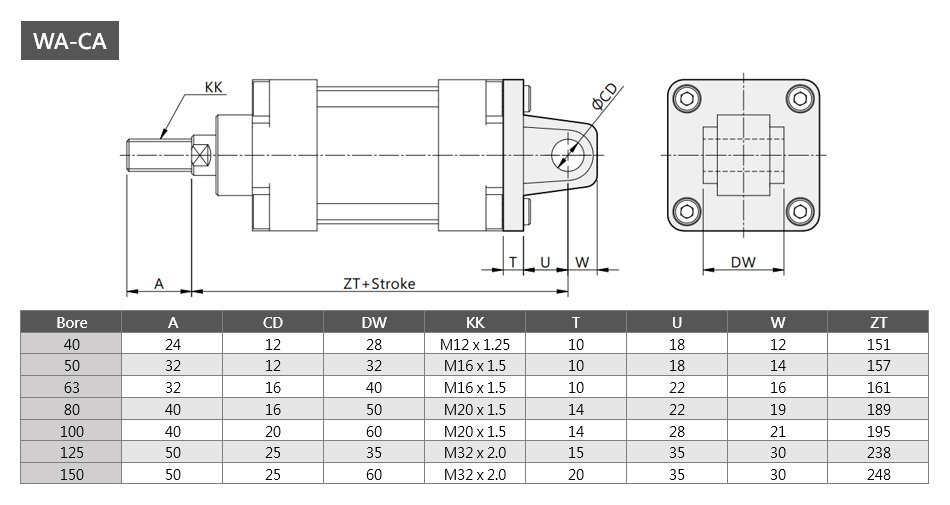

Tie Rod Cylinder WA-CA Series Dimensions

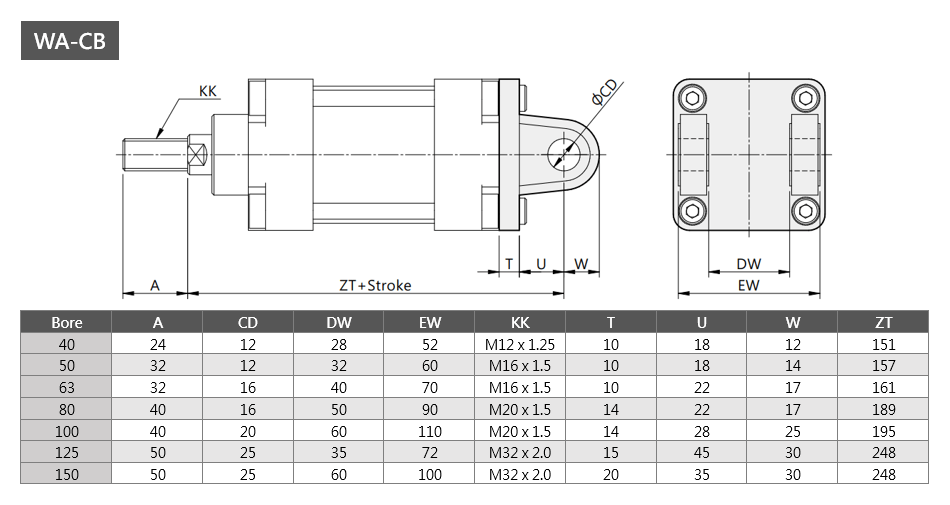

Tie Rod Cylinder WA-CB Series Dimensions

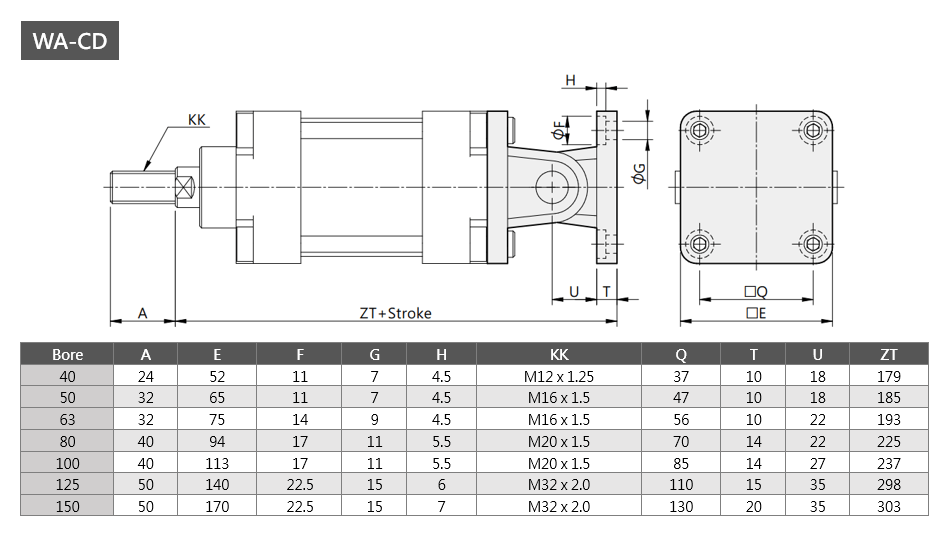

Tie Rod Cylinder WA-CD Series Dimensions

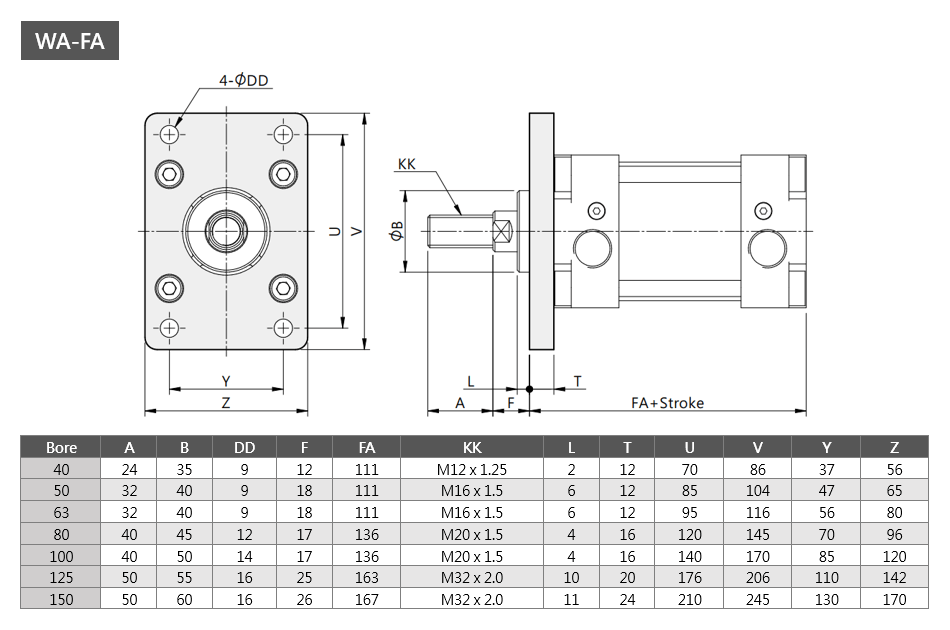

Tie Rod Cylinder WA-FA Series Dimensions

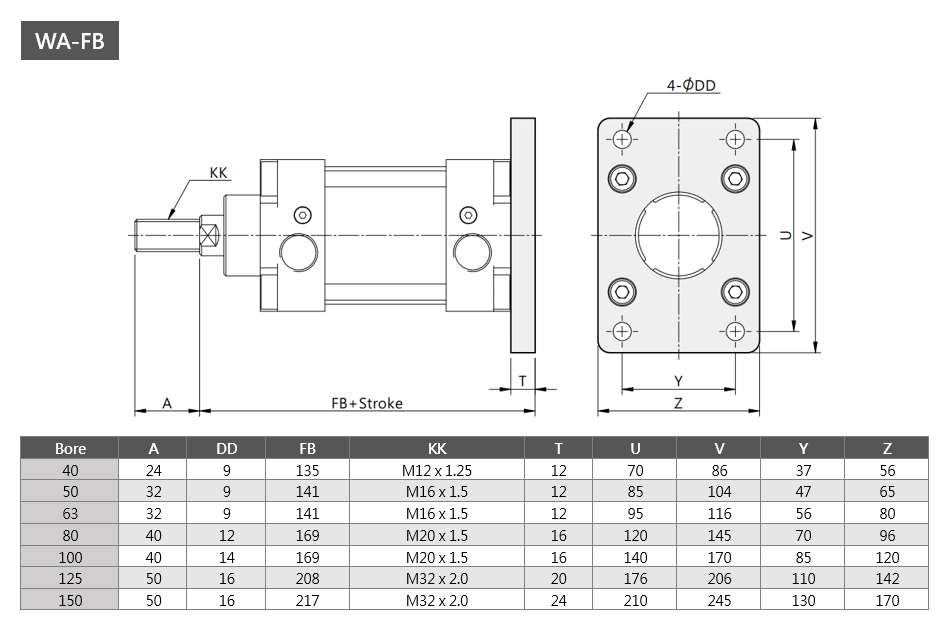

Tie Rod Cylinder WA-FB Series Dimensions

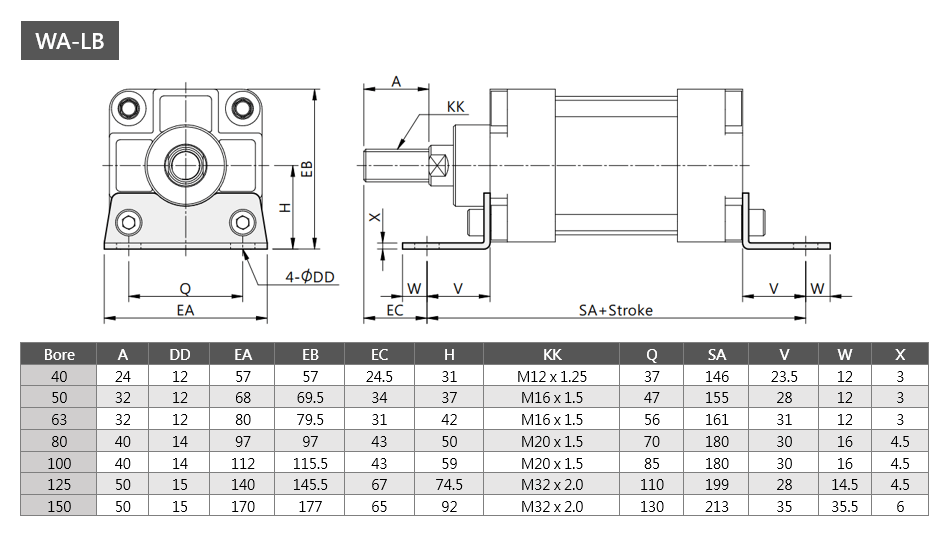

Tie Rod Cylinder WA-LB Series Dimensions

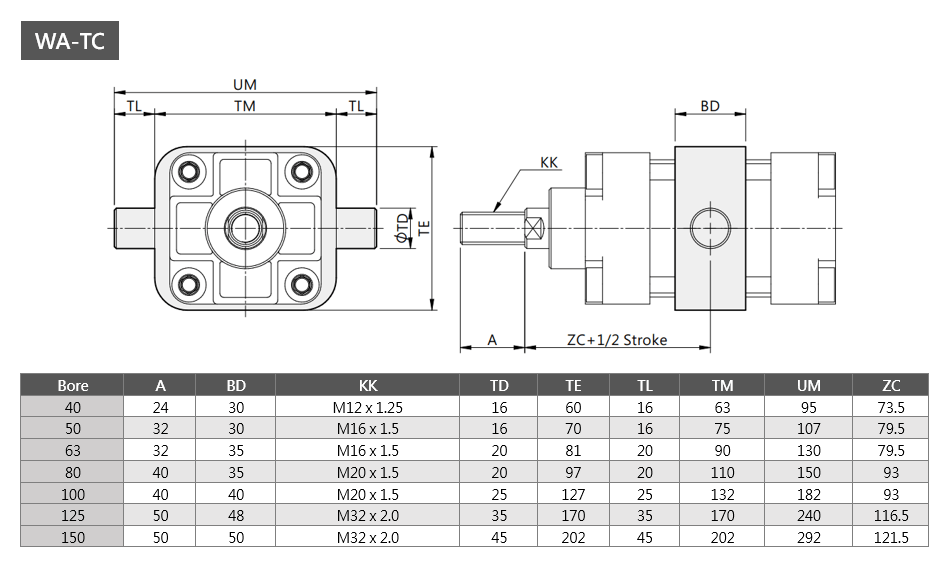

Tie Rod Cylinder WA-TC Series Dimensions
Tie Rod Cylinder WA-I Series Dimensions
Tie Rod Cylinder WA-Y Series Dimensions
Tie Rod Cylinder WA-J Series Dimensions
