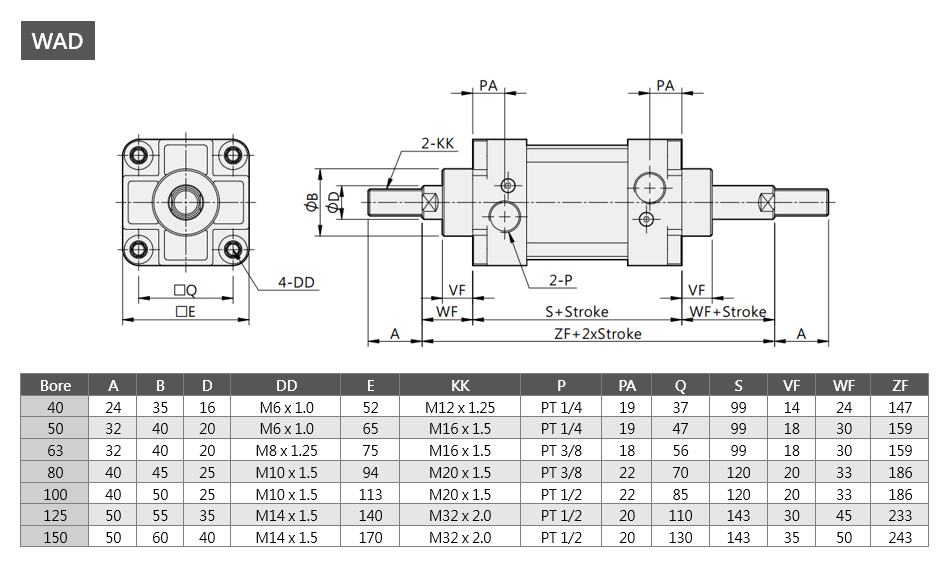

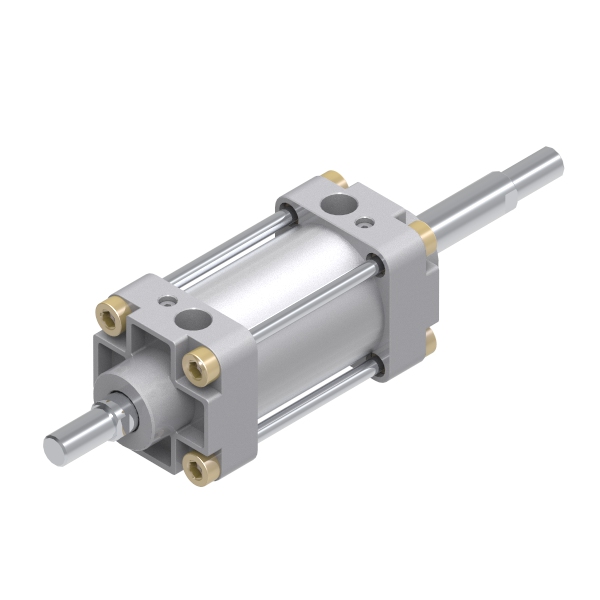

Double Rod Type - WAD Series

Bore ø40~150

Features: High Quality, Long Life; Smooth acting at both high & low speed; Wide variety of mountings; Adjustable cushion at both ends; Magnet type is available for sensors

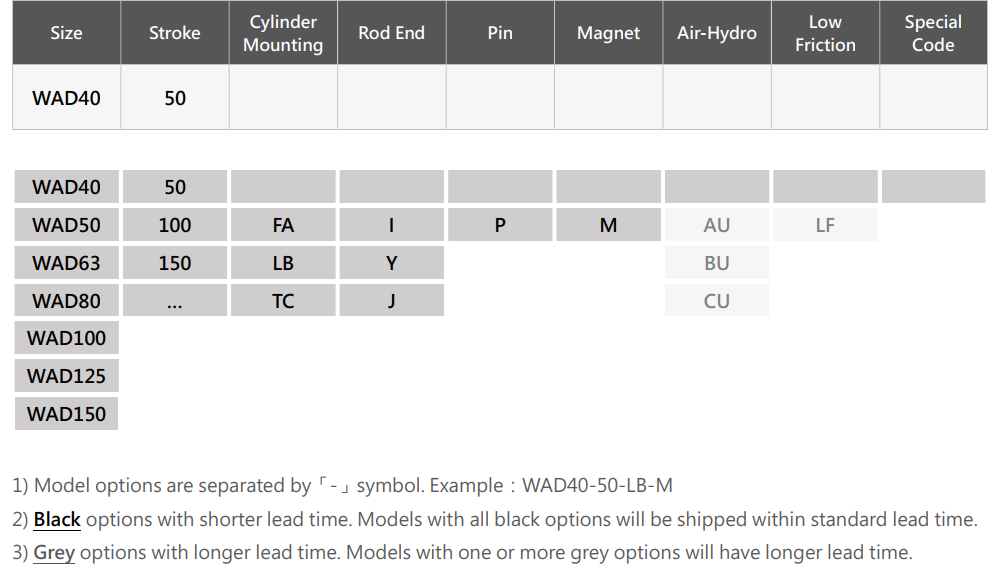

Add Inquiry (0) Order Code - WAD

Product Series		WAD Series
Cylinder Bore	mm	40	50	63	80	100	125	150
Max. Stroke	mm	1000			1500
Standard Stroke	mm	25, 50, 75 ... 300
Fluid	-	Compressed Air – Filtered & Lubricated
Operating Pressure	kg/cm²	1 ~ 10
Ambient Temperature	℃	-20 ~ +80
Sensor	-	Magnetic Switch
