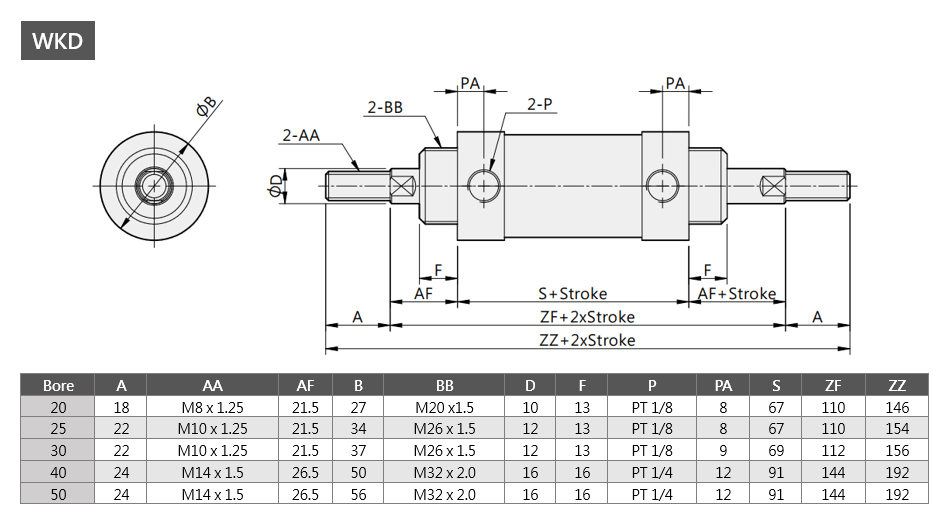

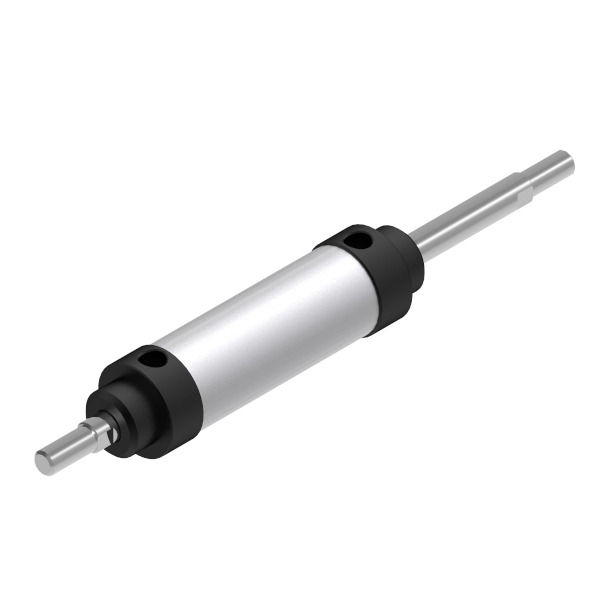

Double Rod Type - WKD Series

Bore ø20~50

Features: High Quality, Long Life; Smooth acting at both high & low speed; Wide variety of mountings; Magnet type is available for sensors

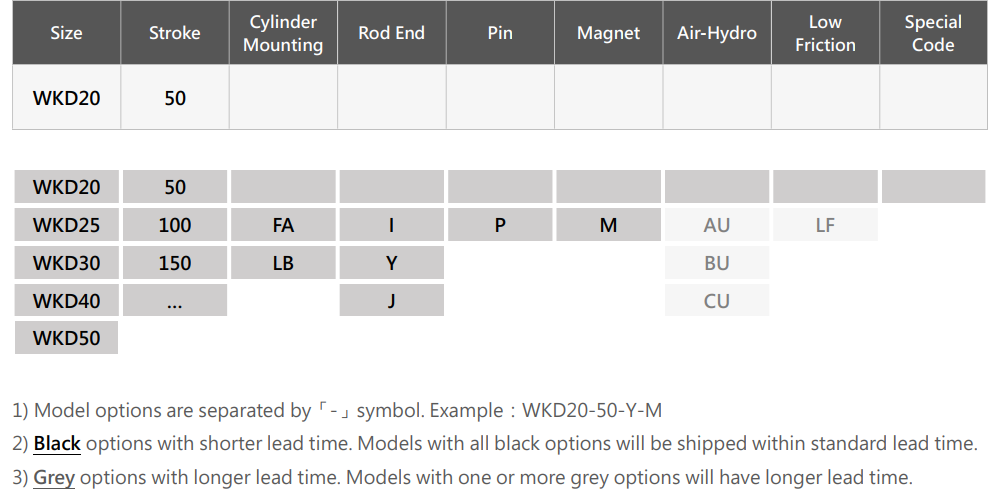

Add Inquiry (0) Order Code - WKD

Product Series		WKD Series
Cylinder Bore	mm	20	25	30	40	50
Max. Stroke	mm	500			1000
Standard Stroke	mm	25, 50, 75 ... 300
Fluid	-	Compressed Air – Filtered & Lubricated
Operating Pressure	kg/cm²	1 ~ 10
Ambient Temperature	℃	-10 ~ +60
Sensor	-	Magnetic Switch
