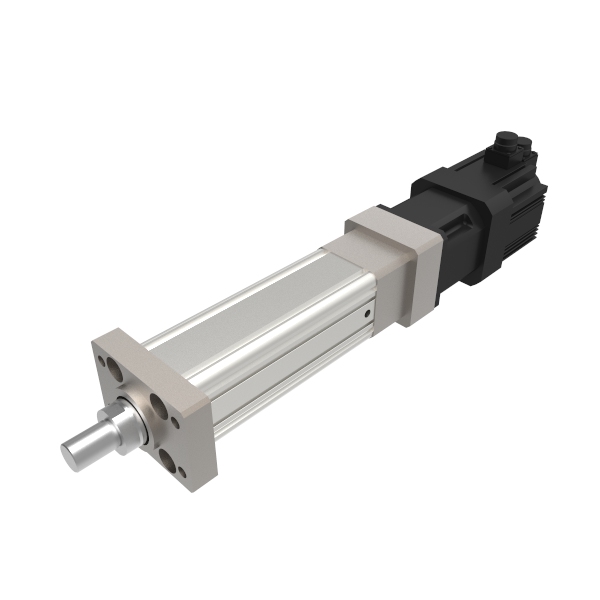

Electric Cylinder / LDE Series
Electric Cylinder - LDE100
Maximum Force 4,500 kgf- Features
- Maximum force 4,500 kgf.
- High axial load rigidity.
- Carbon steel rugged design.
- High precision driven by ball screws.
- Integrated anti-rotation device.
- Applicable to all brands of servo motors and planetary gearboxes.
Description

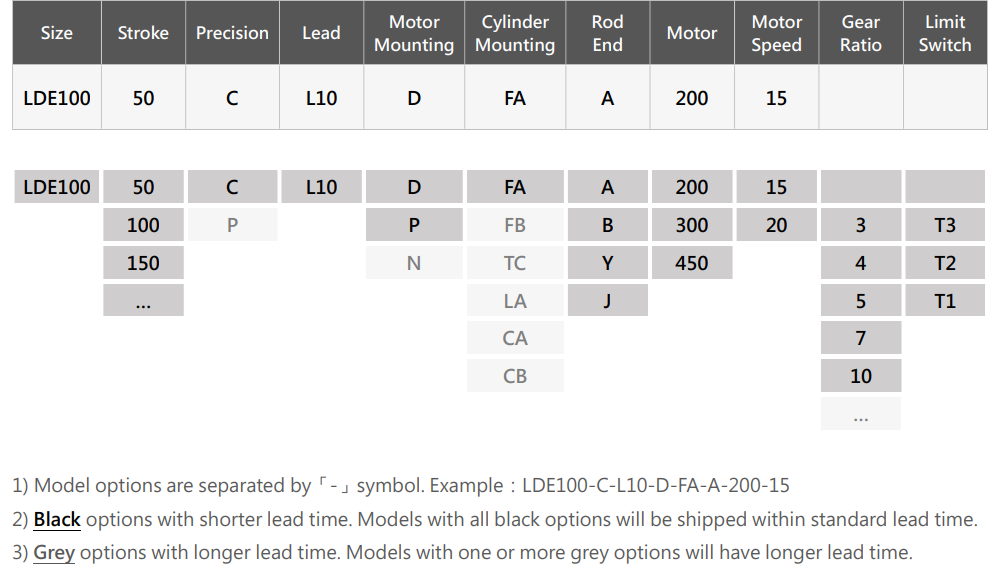

The LDE Series Electric Cylinder is a modular product that incorporates a ball screw and anti-rotation piston rod structure. This cylinder is compatible with most servo motor brands and planetary gearboxes and finds applications in high-load, high-precision clamping, press assembly, and riveting. It also provides an energy-efficient and cost-effective alternative to hydraulic cylinders.Order Code
Technical Data
| Model | LDE100 | |
|---|---|---|
| Permissible Force 1) | kgf | Extension 4500 / Retraction 4500 |
| Stroke 2) | mm | 50 ~ 2000 |
| Screw Type | mm | ø40 Ball Screw C7 / C5 |
| Screw Lead | mm | 10 |
| Repeatability | mm | ±0.02 / ±0.01 |
| Maximum Input Speed | RPM | 3000 |
| Applicable Servo Motor | mm | Frame size 130 / 180 |
| Limit Switch | - | Proximity Switch |
2) Permissible force and speed of the electric cylinder may be limited by long stroke.
Common Motor Selection
| Servo Motor | 2000 W (2000 RPM) | 3000 W (1500 RPM) | 4500 W (1500 RPM) | |
|---|---|---|---|---|
| Rated Torque | Nm | 9.55 | 19.1 | 28.65 |
| Screw Lead | mm | 10 | 10 | 10 |
| Rated Force | N | 40803 (8:1) 51004 (10:1) |
30602 (3:1) 40803 (4:1) 51004 (5:1) |
45903 (3:1) |
| Rated Speed | mm/s | 42 (8:1) 33 (10:1) |
83 (3:1) 63 (4:1) 50 (5:1) |
83 (3:1) |
*) This chart is for reference only. To ensure safety, please limit the motor torque if the rated force exceeds the cylinder's permissible force.
*) Motors not listed above can also be selected. Contact us for more information.

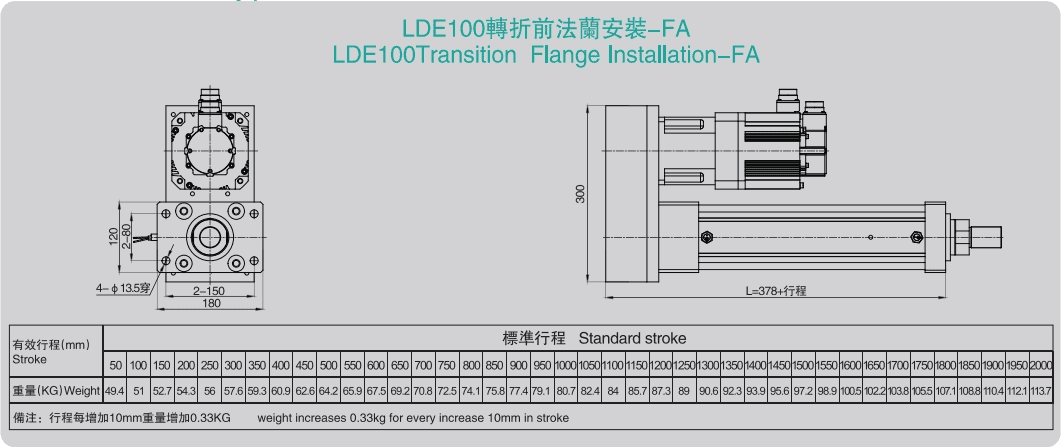

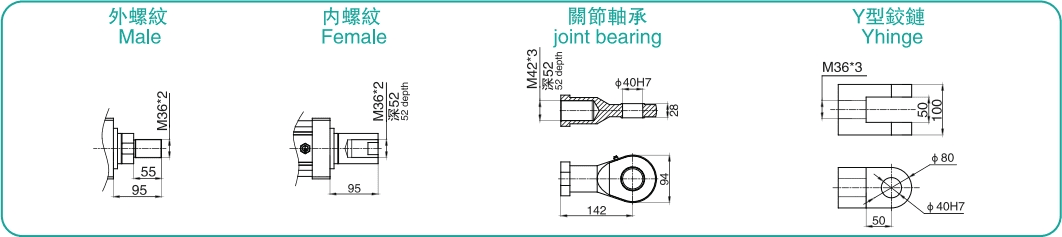

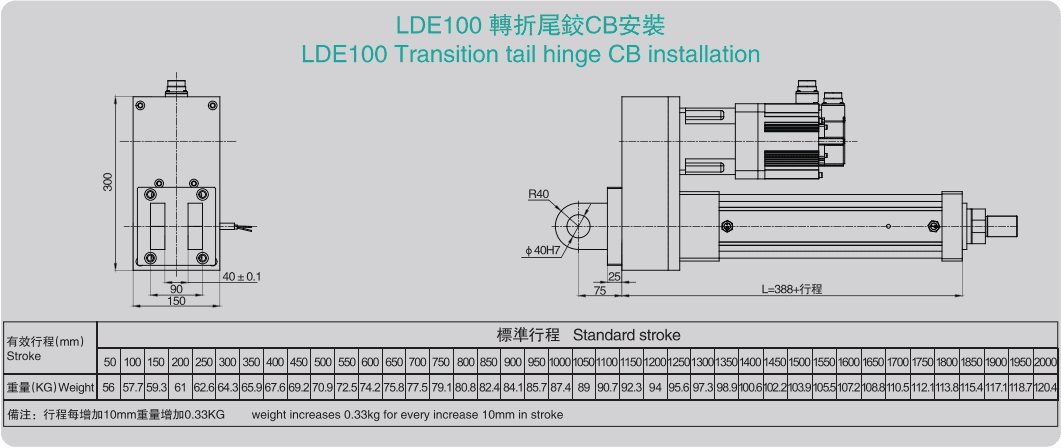

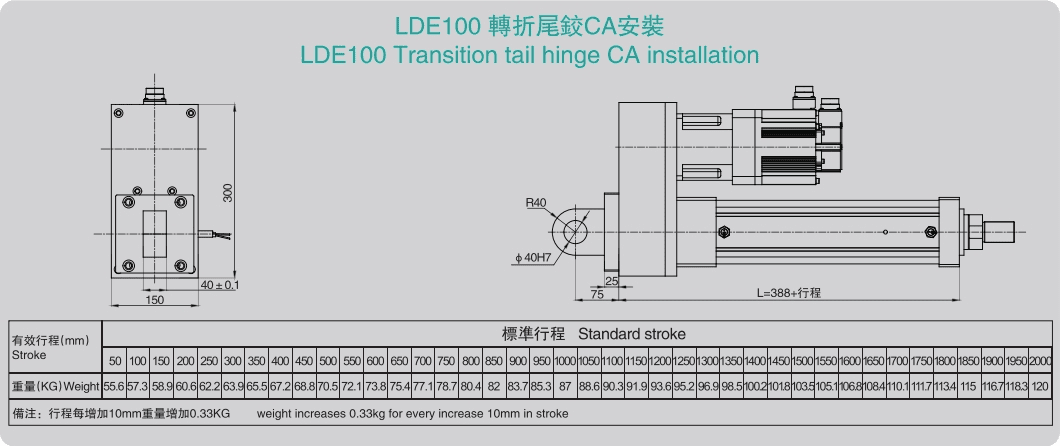

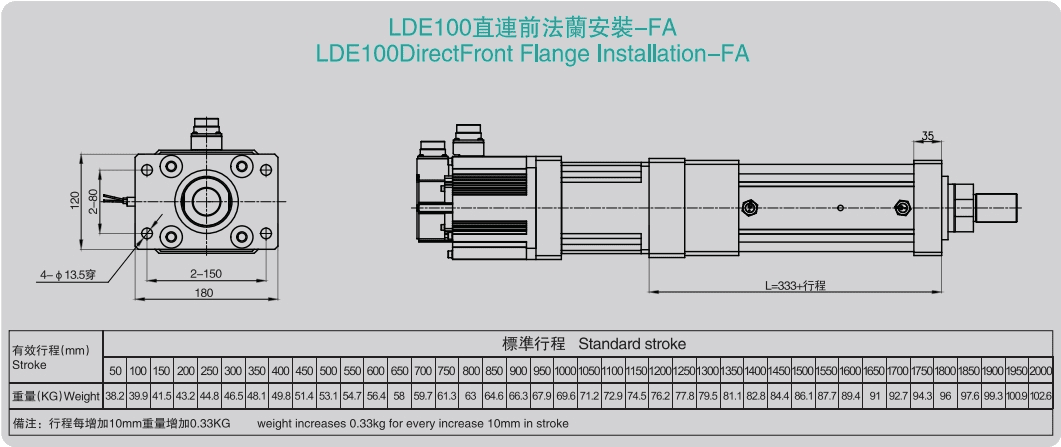

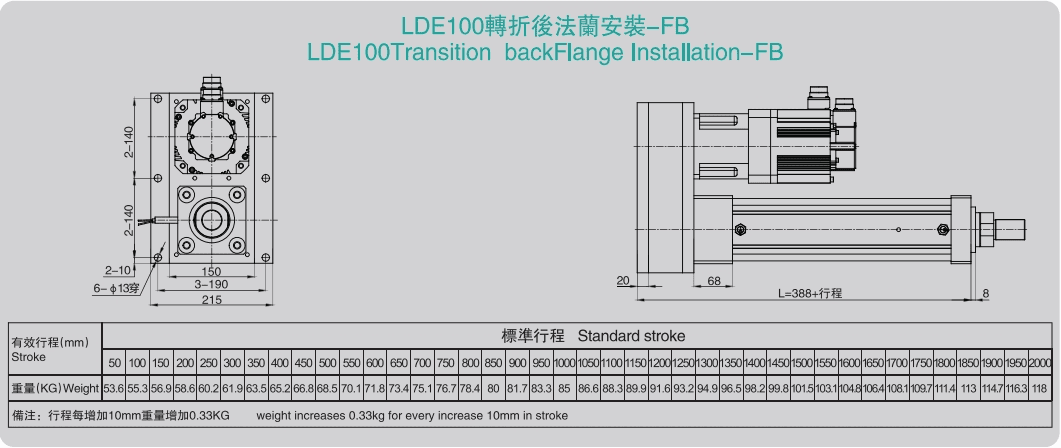

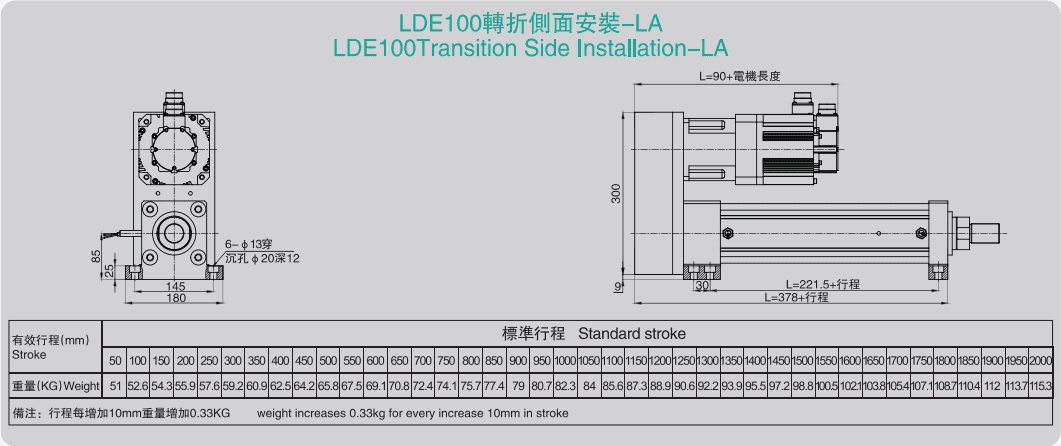

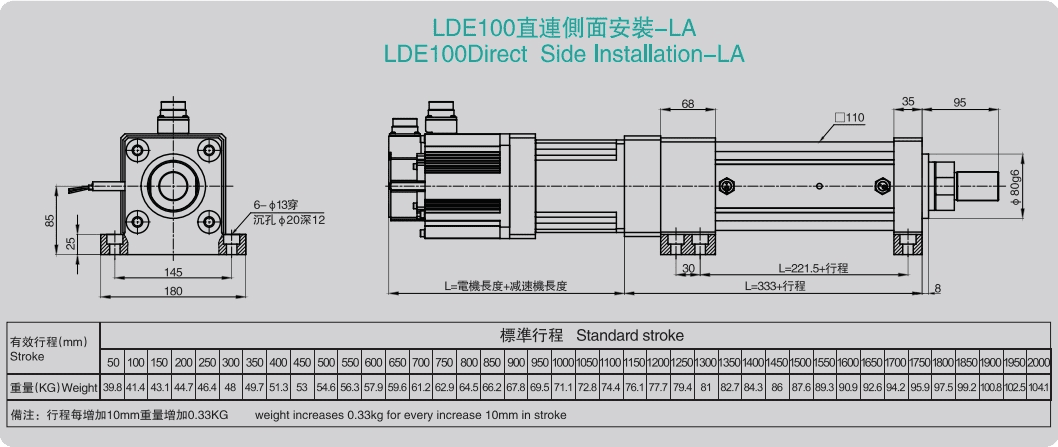

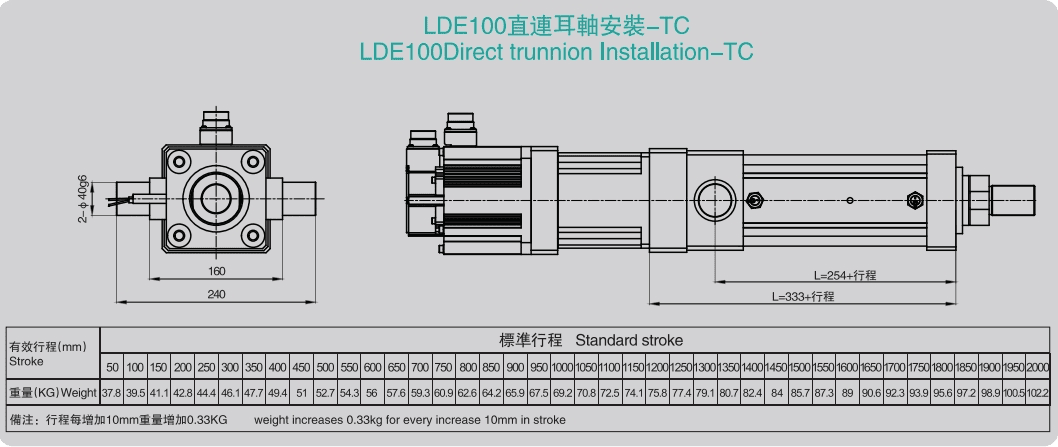

Dimensions
