Electric Cylinder / LDE Series

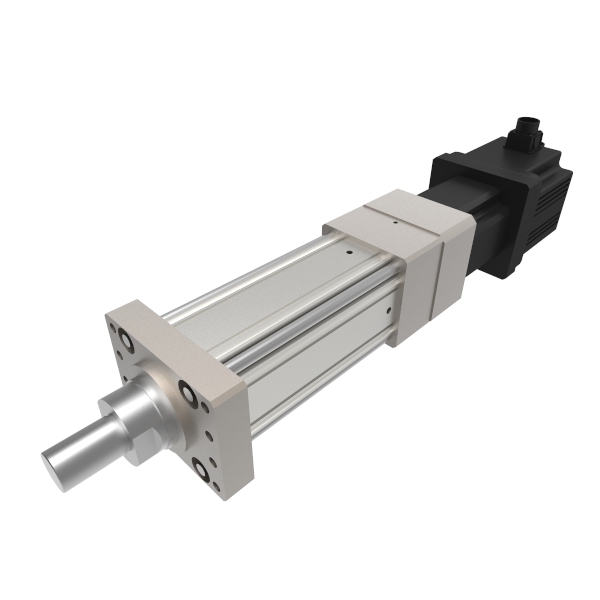

Electric Cylinder - LDE125
Maximum Force 6,000 kgf- Features
- Maximum force 6,000 kgf.
- High axial load rigidity.
- Carbon steel rugged design.
- High precision driven by ball screws.
- Integrated anti-rotation device.
- Applicable to all brands of servo motors and planetary gearboxes.
Description

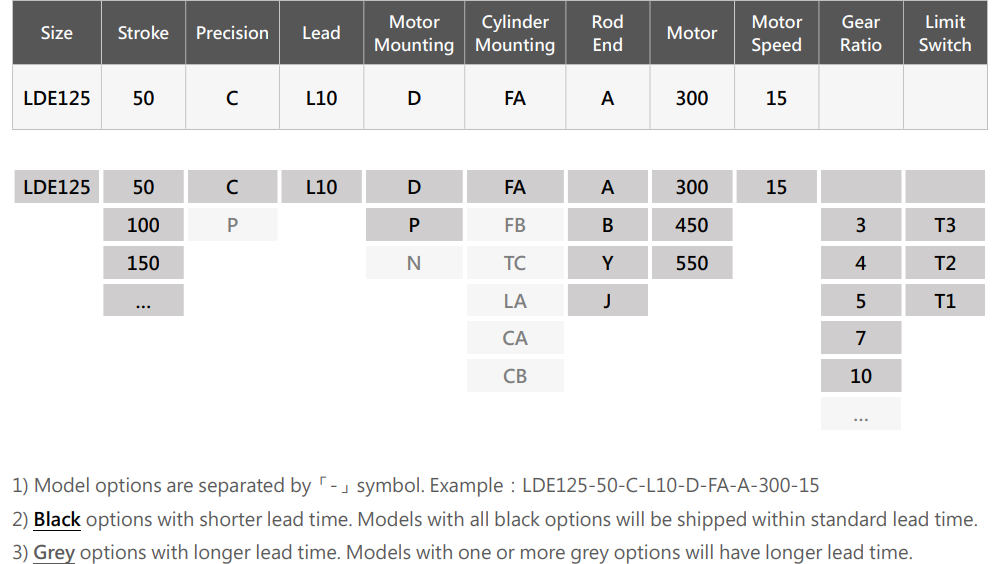

The LDE Series Electric Cylinder is a modular product that incorporates a ball screw and anti-rotation piston rod structure. This cylinder is compatible with most servo motor brands and planetary gearboxes and finds applications in high-load, high-precision clamping, press assembly, and riveting. It also provides an energy-efficient and cost-effective alternative to hydraulic cylinders.Order Code
Technical Data
| Model | LDE125 | |
|---|---|---|
| Permissible Force 1) | kgf | Extension 6000 / Retraction 6000 |
| Stroke 2) | mm | 50 ~ 2000 |
| Screw Type | mm | ø50 Ball Screw C7 / C5 |
| Screw Lead | mm | 10 |
| Repeatability | mm | ±0.02 / ±0.01 |
| Maximum Input Speed | RPM | 3000 |
| Applicable Servo Motor | mm | Frame size 180 |
| Limit Switch | - | Proximity Switch |
2) Permissible force and speed of the electric cylinder may be limited by long stroke.
Common Motor Selection
| Servo Motor | 3000 W (1500 RPM) | 4500 W (1500 RPM) | 5500 W (1500 RPM) | |
|---|---|---|---|---|
| Rated Torque | Nm | 19.1 | 28.65 | 35.01 |
| Screw Lead | mm | 10 | 10 | 10 |
| Rated Force | N | 51004 (5:1) 61205 (6:1) |
45903 (3:1) 61205 (4:1) |
56093 (3:1) |
| Rated Speed | mm/s | 50 (5:1) 42 (6:1) |
83 (3:1) 63 (4:1) |
83 (3:1) |
*) This chart is for reference only. To ensure safety, please limit the motor torque if the rated force exceeds the cylinder's permissible force.
*) Motors not listed above can also be selected. Contact us for more information.

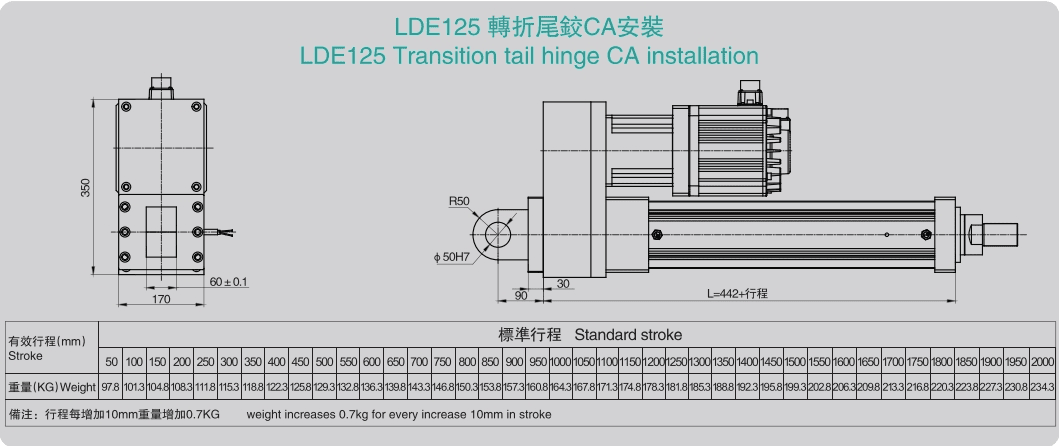

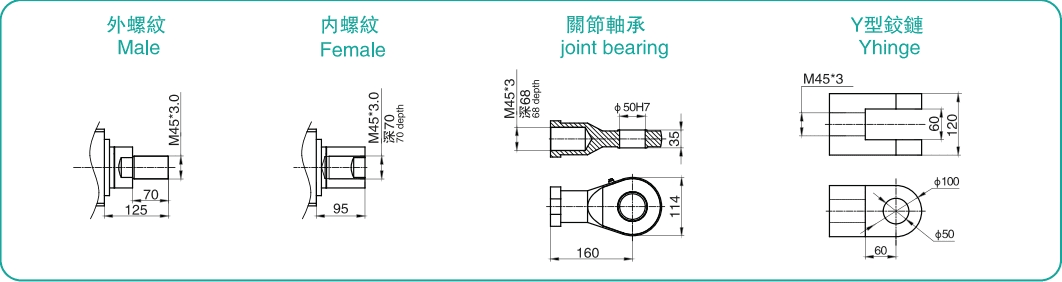

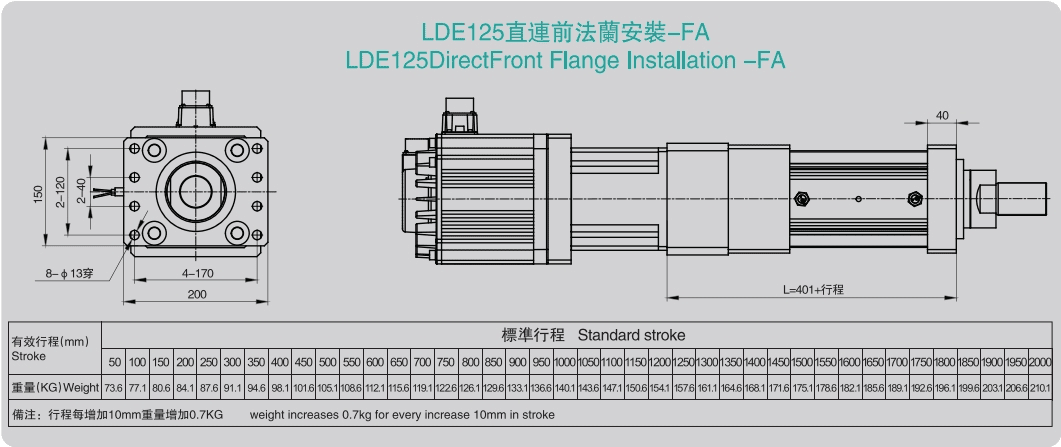

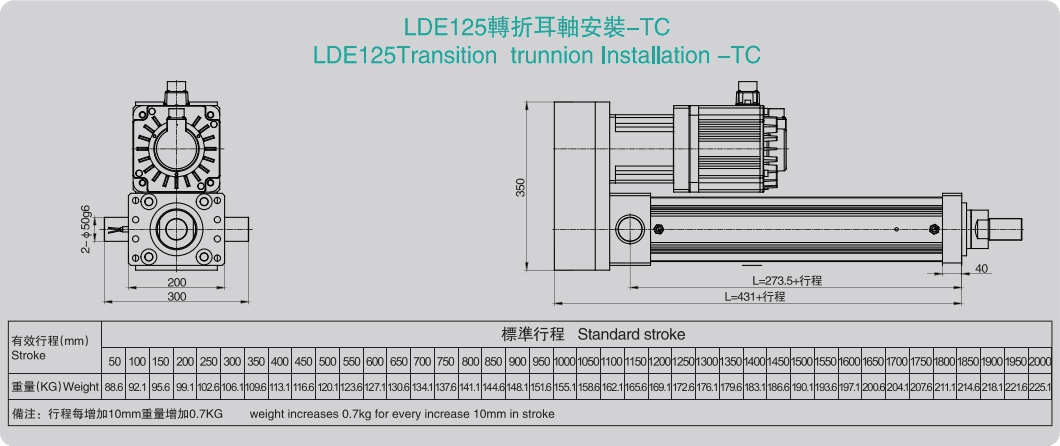

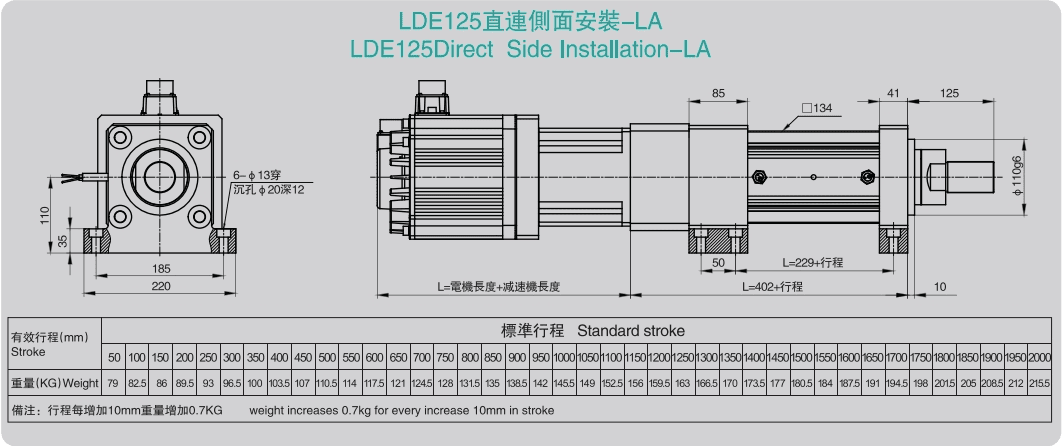

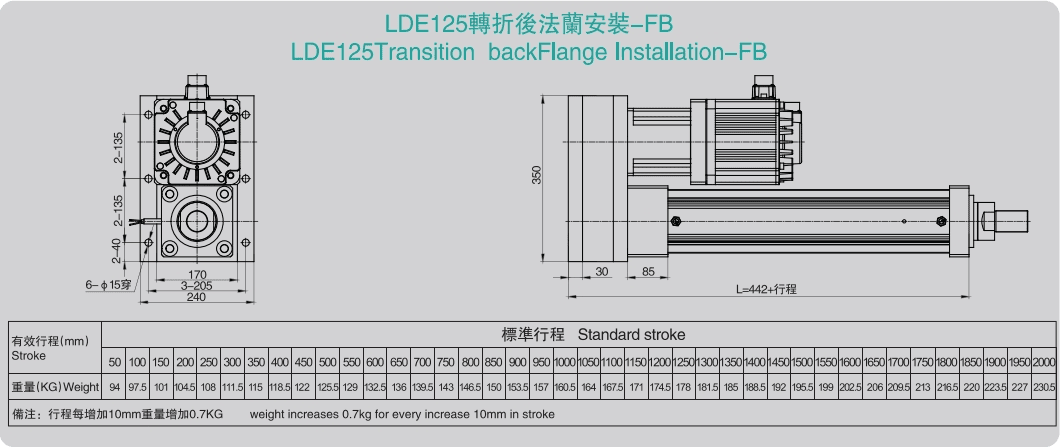

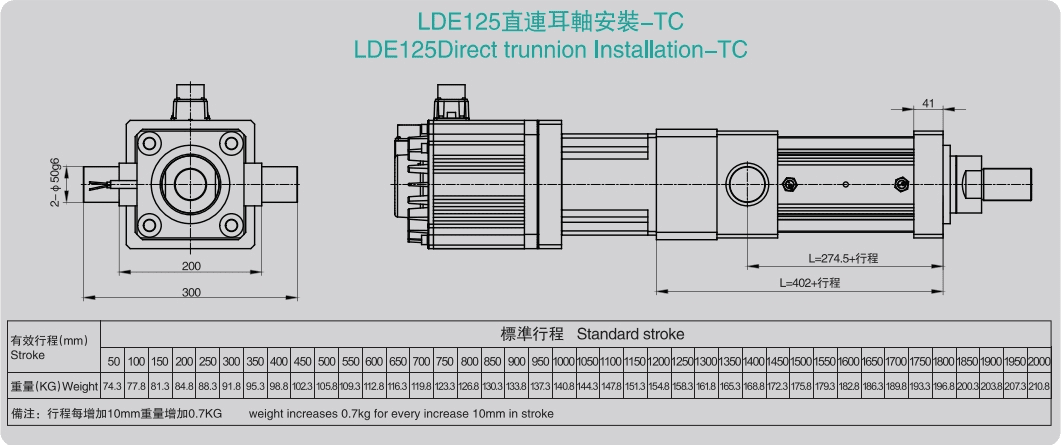

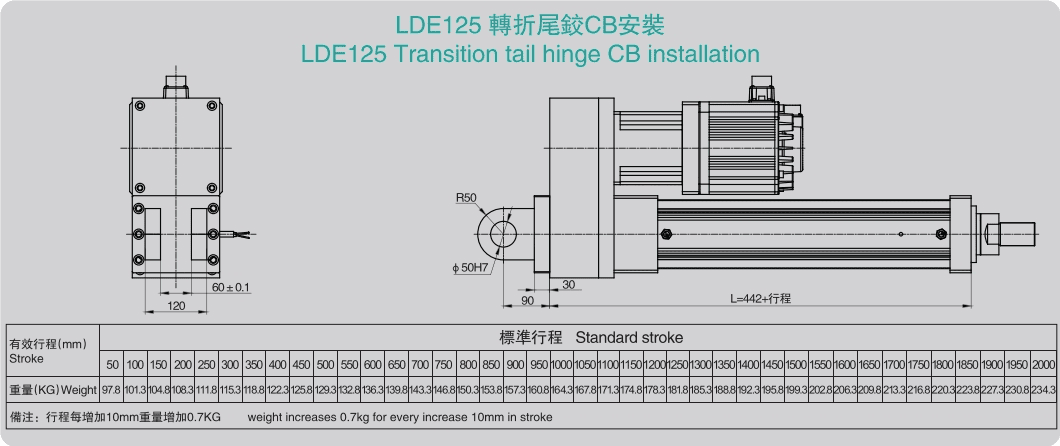

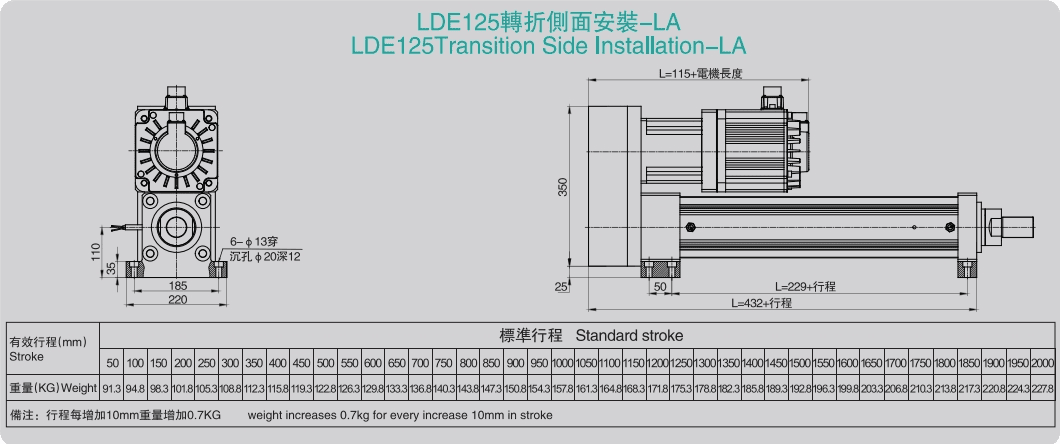

Dimensions
