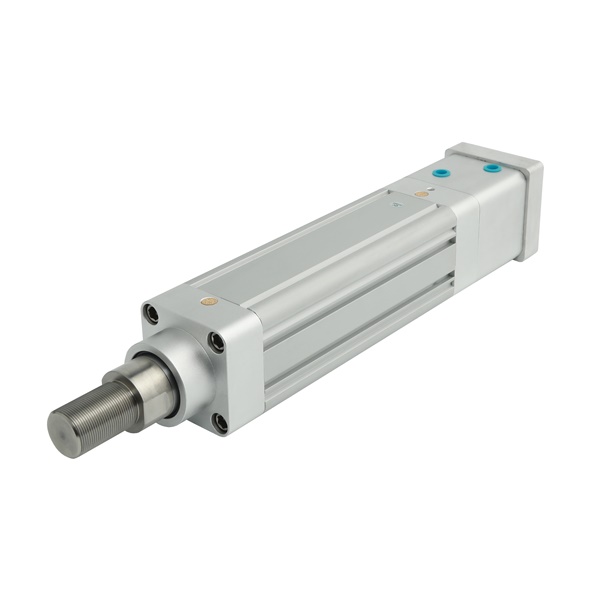

Electric Cylinder / LOE Series
Electric Cylinder - LOE63
Maximum Force 500 kgf- Features
- Maximum force 500 kgf.
- High power density.
- Aluminum body, lightweight design.
- High precision driven by ball screws.
- Integrated anti-rotation device.
- Limit switches can be concealed in the profile.
- Applicable to all brands of servo motors.
Description

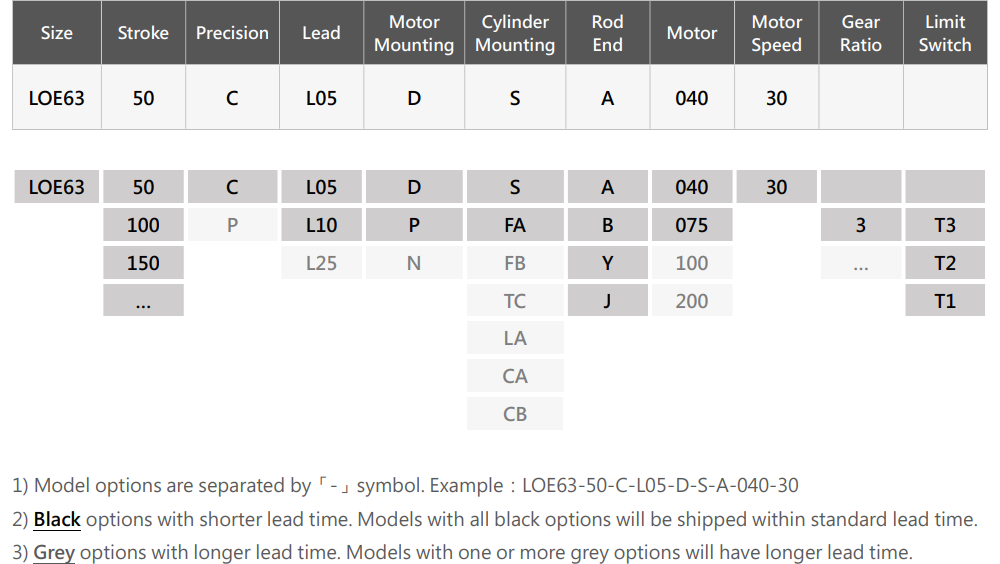

The LOE Series Electric Cylinder is a modular product that incorporates a ball screw and anti-rotation piston rod structure. The LOE Cylinder is suitable for installing most brands of servo motors and planetary gearboxes. It is primarily used in applications such as high-speed linear motion control, low-thrust parts assembly, pressing, and push/pull processes. Alternatively, it can easily replace pneumatic and hydraulic cylinders, offering a more energy-efficient and cost-effective solution.Order Code
Technical Data
| Model | LOE63 | |
|---|---|---|
| Permissible Force 1) | kgf | Extension 500 / Retraction 500 |
| Stroke 2) | mm | 50 ~ 1000 |
| Screw Type | mm | ø20 Ball Screw C7 / C5 |
| Screw Lead | mm | 5 / 10 |
| Repeatability | mm | ±0.02 / ±0.01 |
| Maximum Input Speed | RPM | 3000 |
| Applicable Servo Motor | mm | Frame size 60 / 80 |
| Limit Switch | - | Magnetic Switch |
2) Permissible force and speed of the electric cylinder may be limited by long stroke.
Common Motor Selection
| Servo Motor | 400 W (3000 RPM) | 750 W (3000 RPM) | |||
|---|---|---|---|---|---|
| Rated Torque | Nm | 1.27 | 2.4 | ||
| Screw Lead | mm | 5 | 10 | 5 | 10 |
| Rated Force | N | 1357 (1:1) | 3391 (5:1) 4070 (6:1) 4748 (7:1) 5426 (8:1) |
2553 (1:1) | 1276 (1:1) 3829 (3:1) 5106 (4:1) |
| Rated Speed | mm/s | 250 (1:1) | 100 (5:1) 83 (6:1) 71 (7:1) 63 (8:1) |
250 (1:1) | 500 (1:1) 167 (3:1) 125 (4:1) |
*) This chart is for reference only. To ensure safety, please limit the motor torque if the rated force exceeds the cylinder's permissible force.
*) Motors not listed above can also be selected. Contact us for more information.

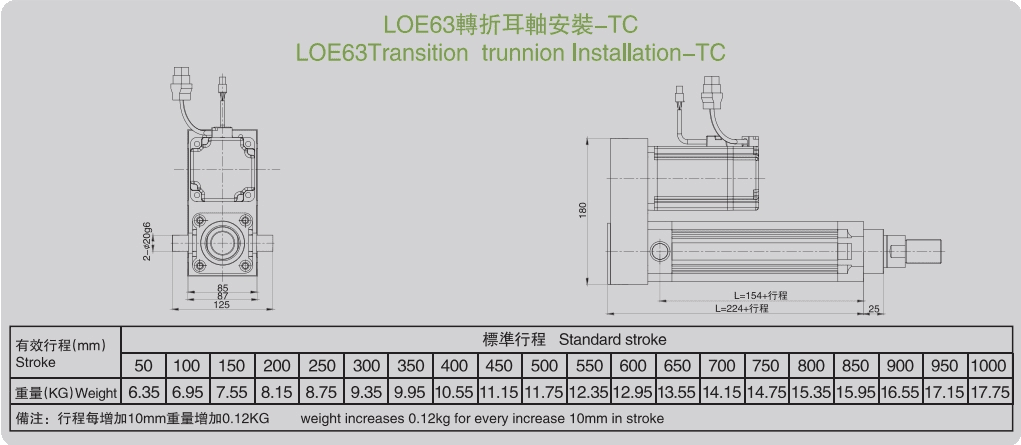

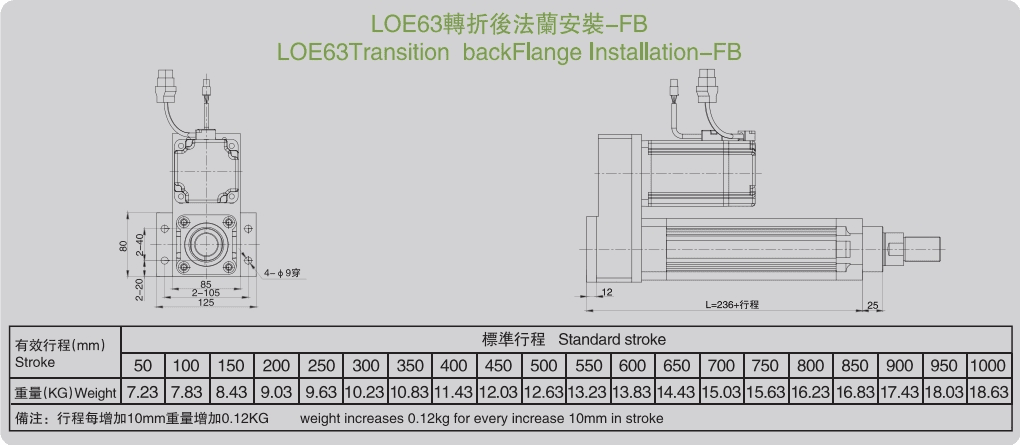

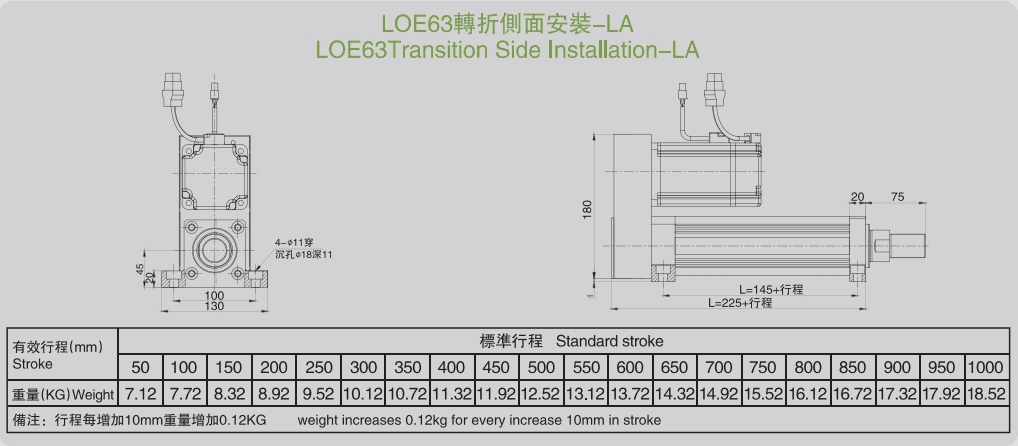

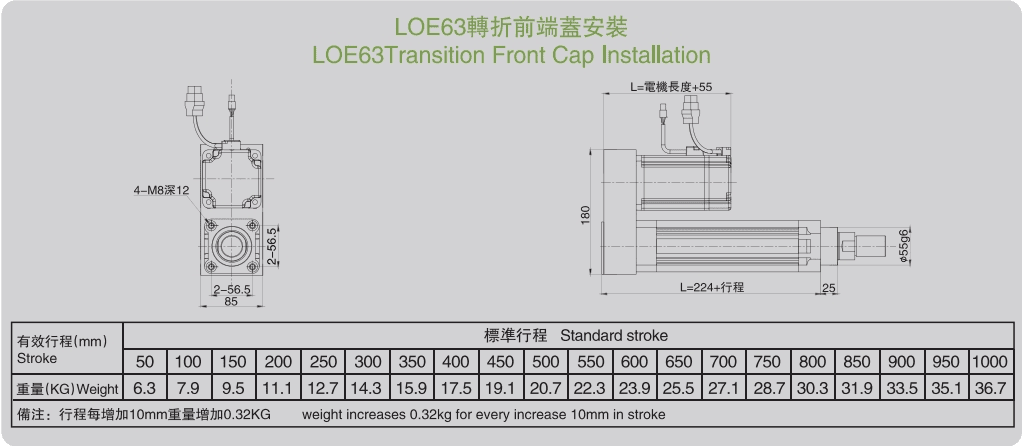

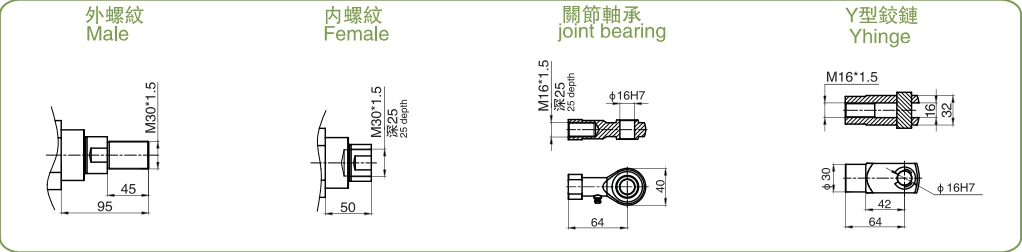

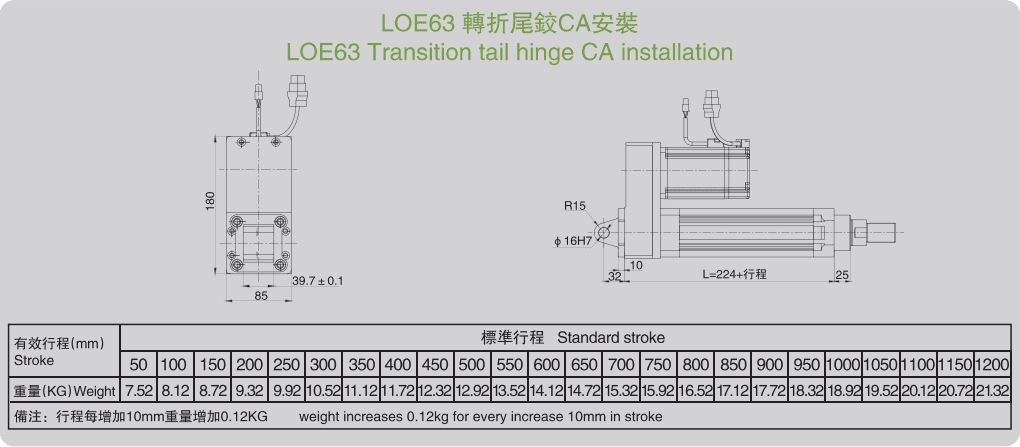

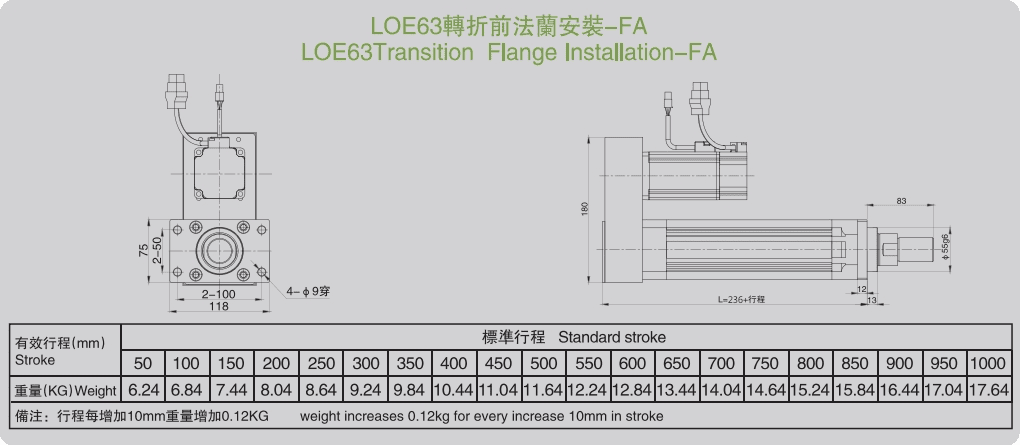

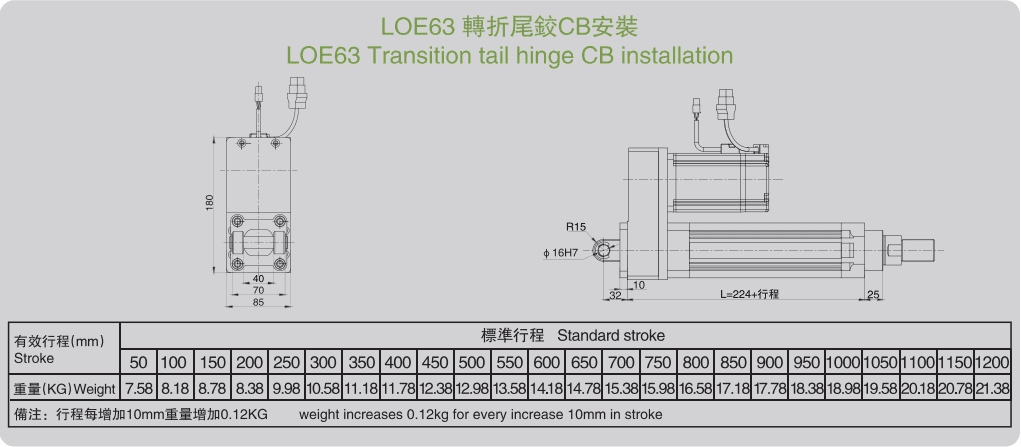

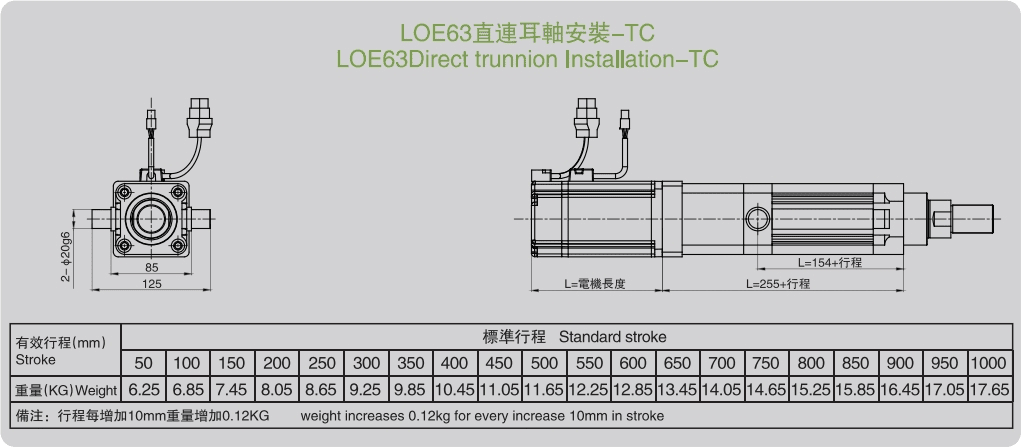

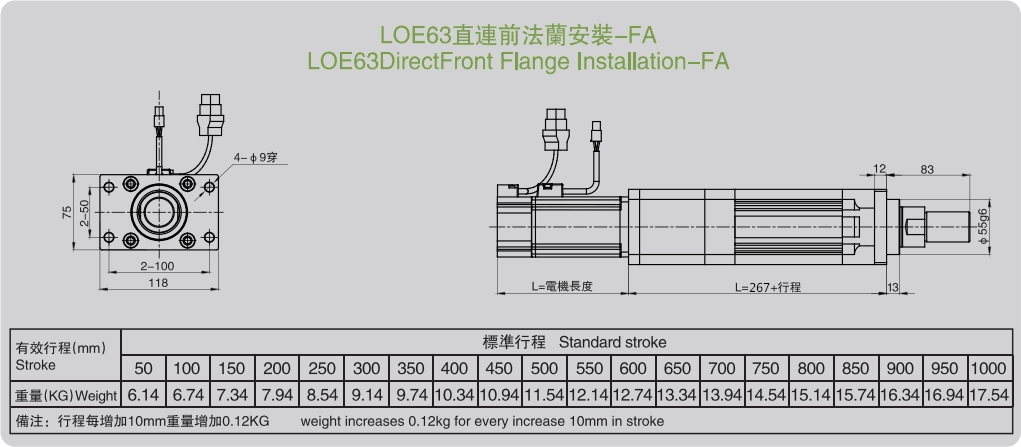

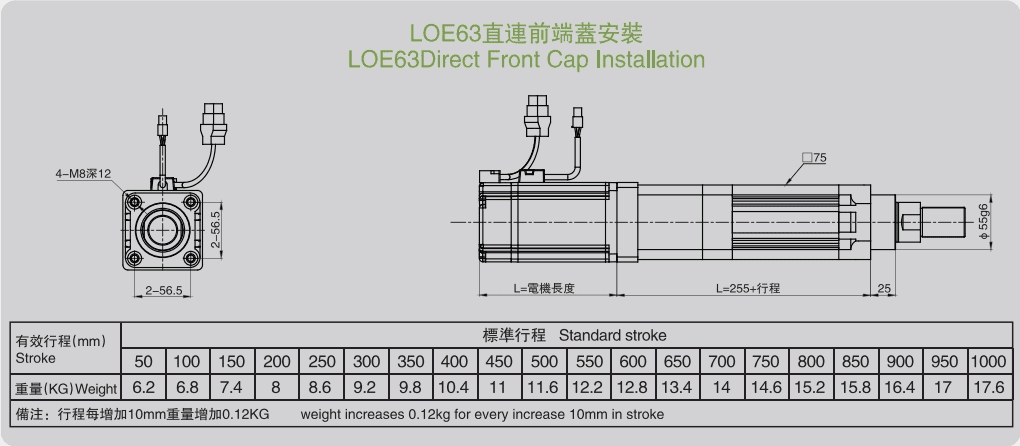

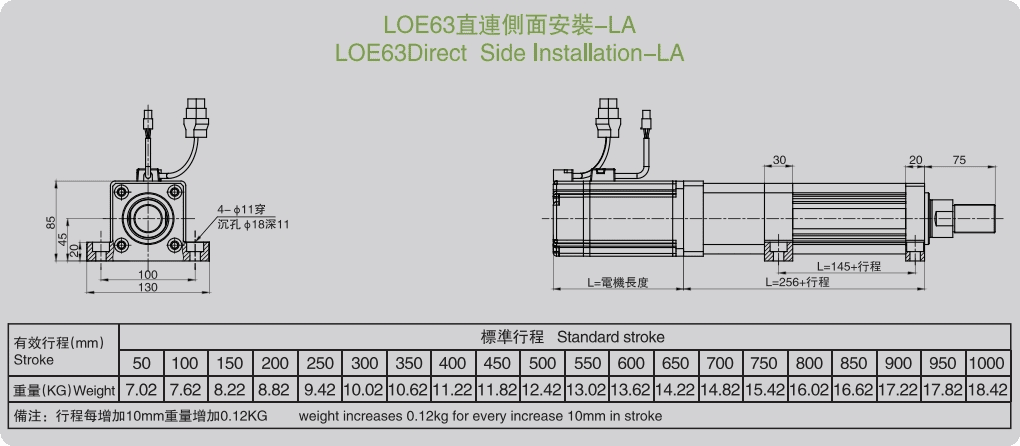

Dimensions
