Electric Cylinder / LOE Series

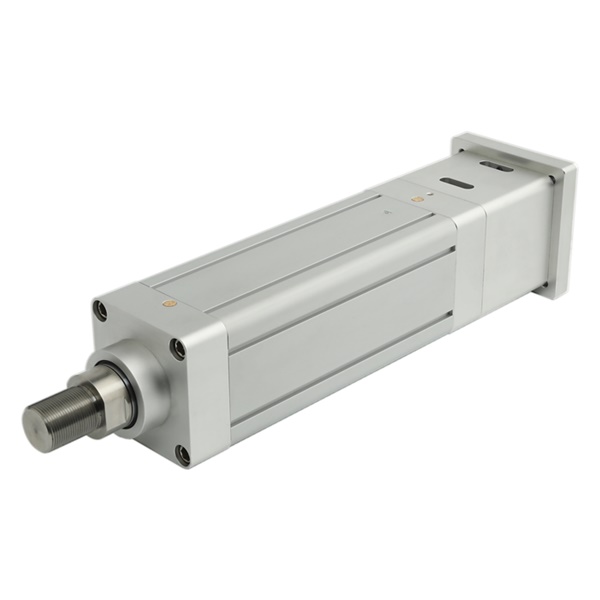

Electric Cylinder - LOE100

Maximum Force 2,000 kgf

Features: Maximum force 2,000 kgf.; High power density.; Aluminum body, lightweight design.; High precision driven by ball screws.; Integrated anti-rotation device.; Limit switches can be concealed in the profile.; Applicable to all brands of servo motors.

Description

The LOE Series Electric Cylinder is a modular product that incorporates a ball screw and anti-rotation piston rod structure. The LOE Cylinder is suitable for installing most brands of servo motors and planetary gearboxes. It is primarily used in applications such as high-speed linear motion control, low-thrust parts assembly, pressing, and push/pull processes. Alternatively, it can easily replace pneumatic and hydraulic cylinders, offering a more energy-efficient and cost-effective solution.

Add Inquiry (0) Order Code - LOE100

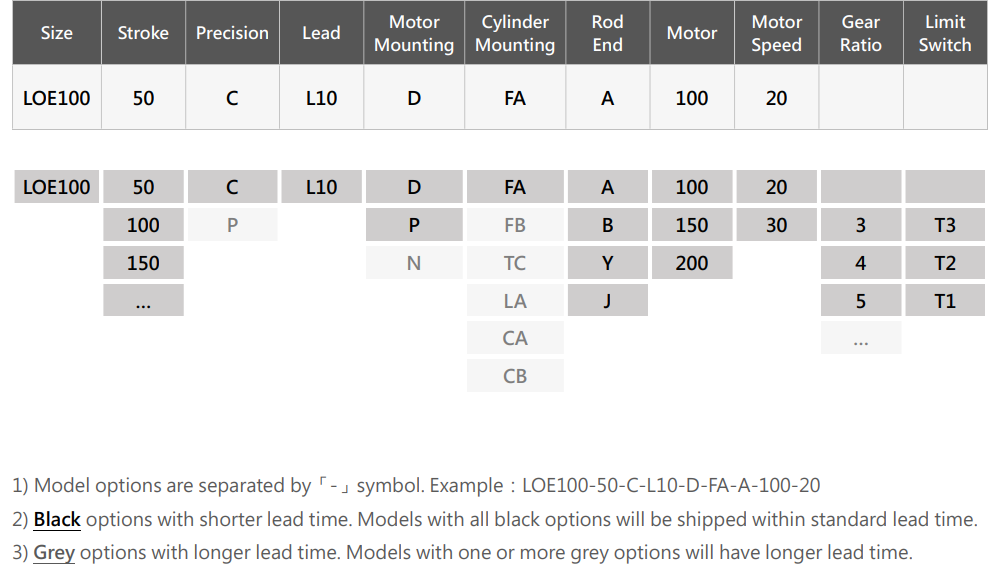

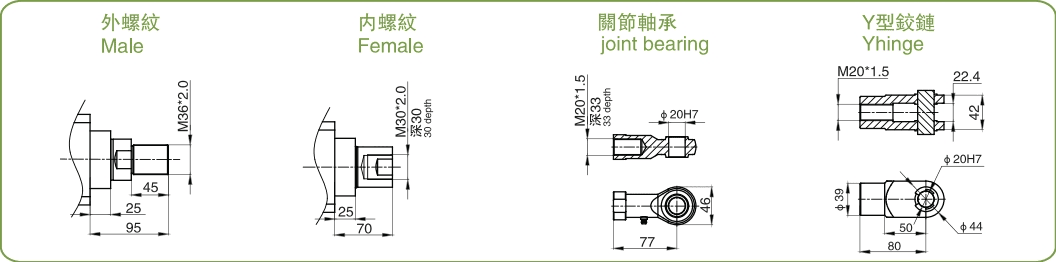

Order Code

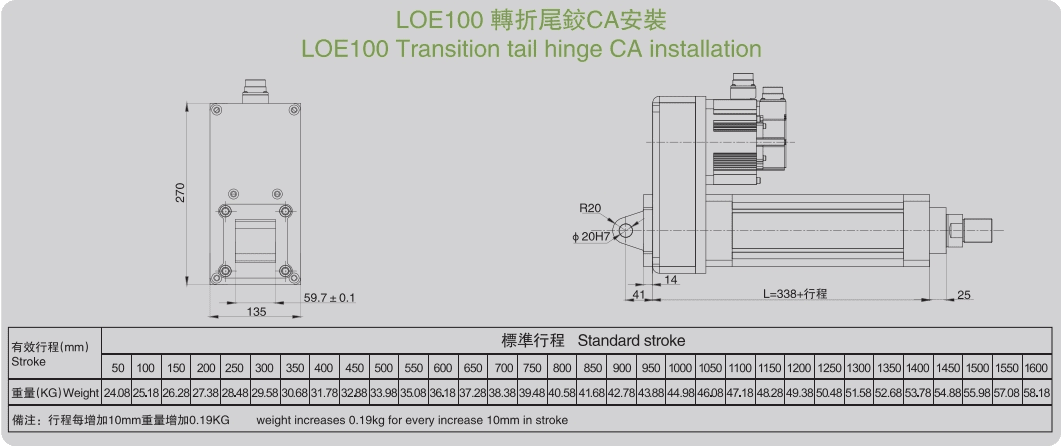

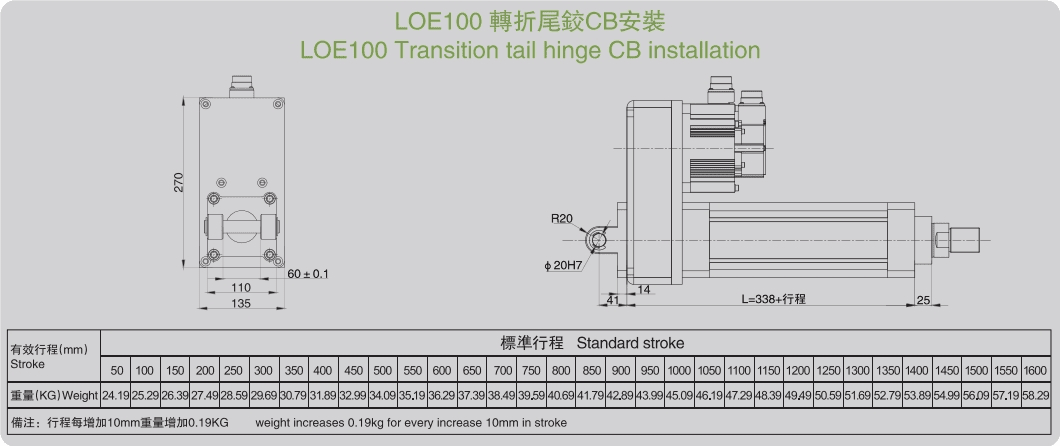

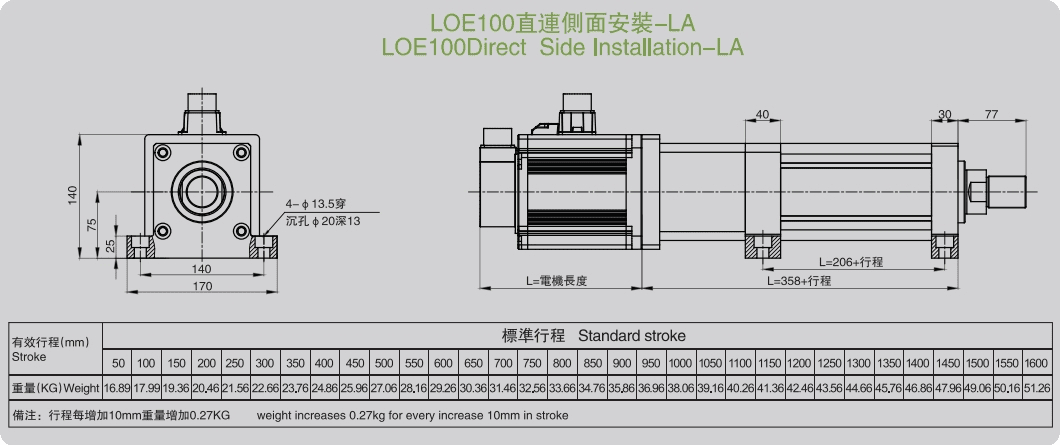

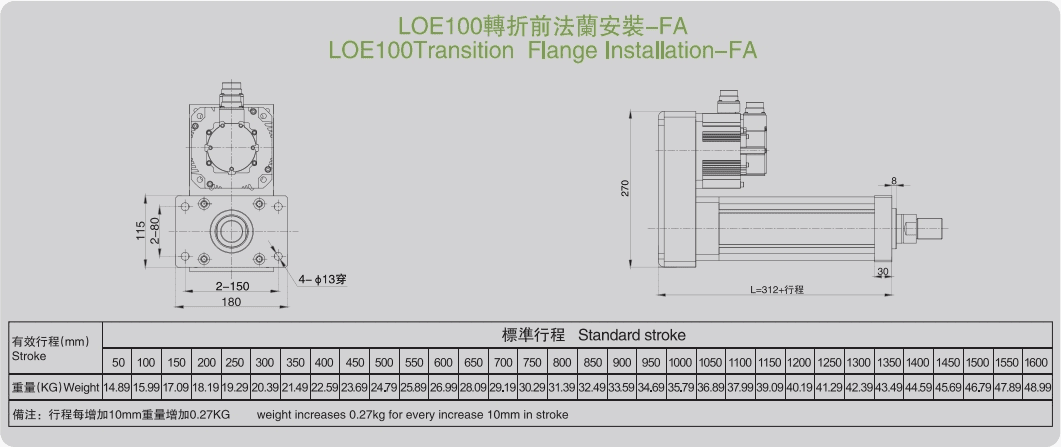

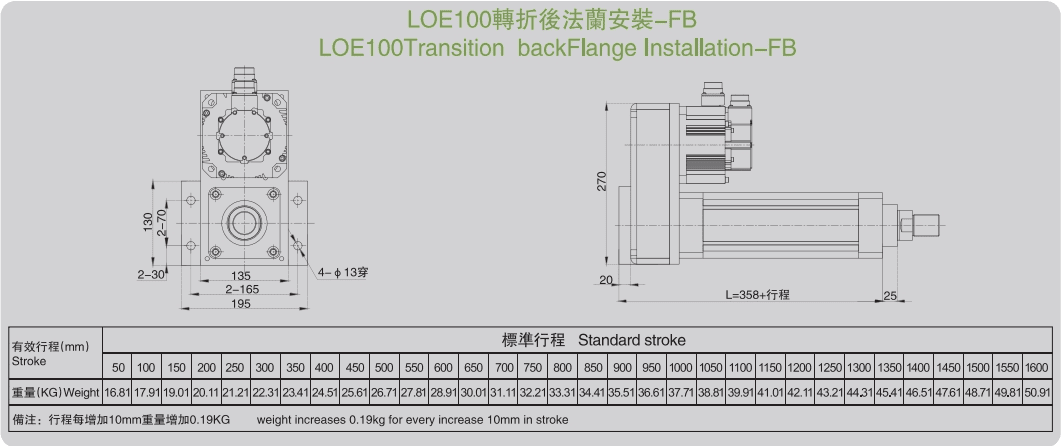

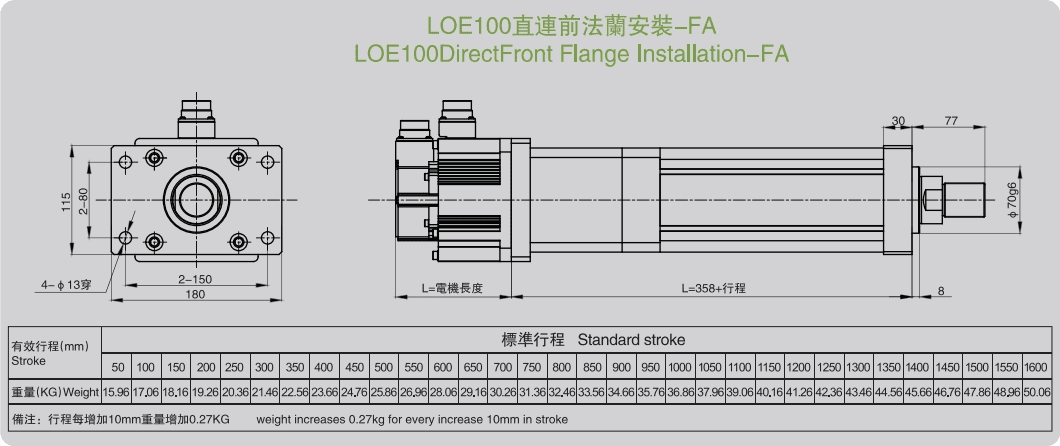

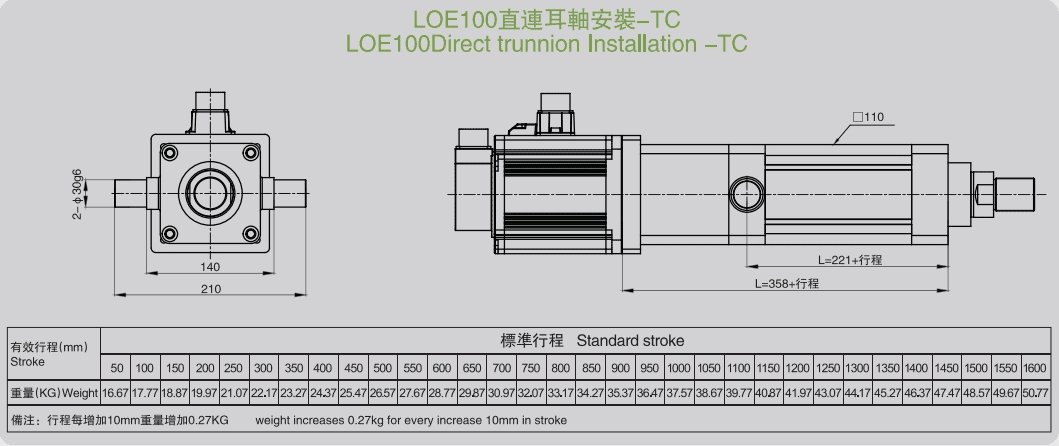

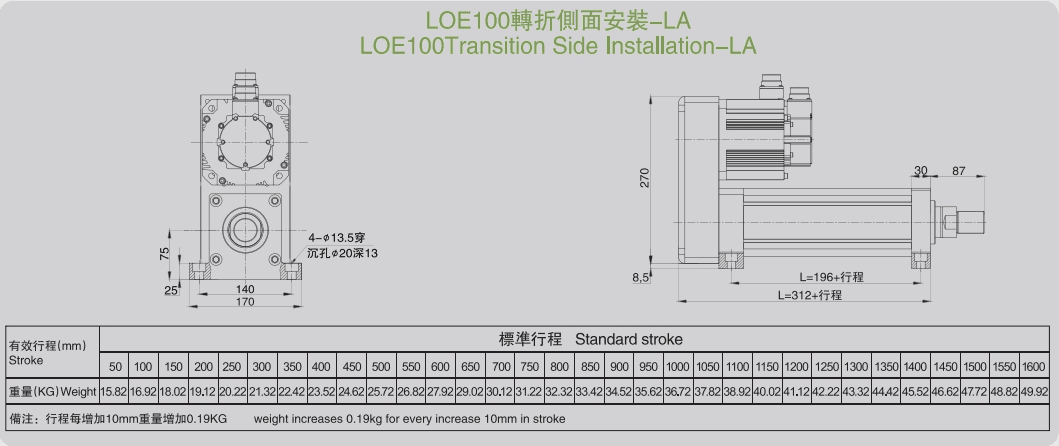

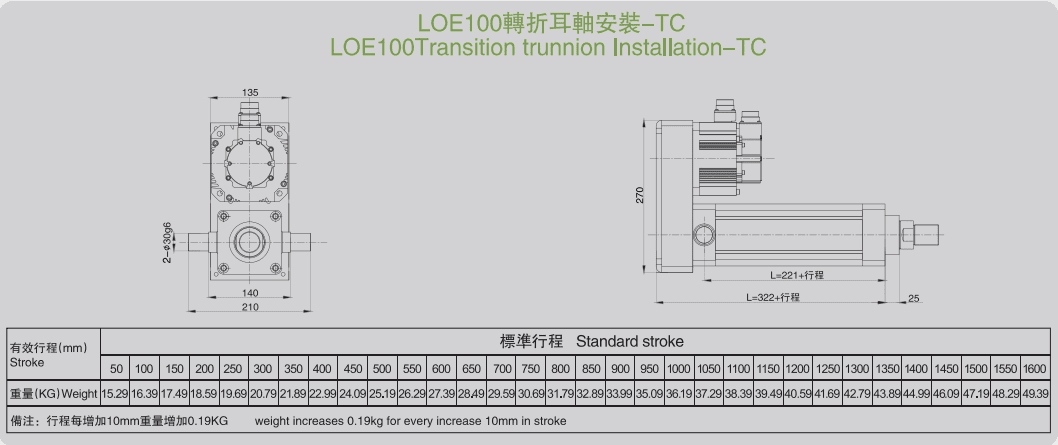

Technical Data

Model		LOE100
Permissible Force ¹⁾	kgf	Extension 2000 / Retraction 2000
Stroke ²⁾	mm	50 ~ 1600
Screw Type	mm	ø32 Ball Screw C7 / C5
Screw Lead	mm	10
Repeatability	mm	±0.02 / ±0.01
Maximum Input Speed	RPM	3000
Applicable Servo Motor	mm	Frame size 130
Limit Switch	-	Magnetic Switch

¹⁾ Controlled push / pull force. Impact forces that causes sudden stop are not allowed.
²⁾ Permissible force and speed of the electric cylinder may be limited by long stroke.

Common Motor Selection

Servo Motor		1000 W (2000 RPM)	1500 W (2000 RPM)	2000 W (2000 RPM)
Rated Torque	Nm	4.77	7.16	9.55
Screw Lead	mm	10	10	10
Rated Force	N	17833 (7:1) 20380 (8:1)	15296 (4:1) 19120 (5:1)	15301 (3:1) 20402 (4:1)
Rated Speed	mm/s	48 (7:1) 42 (8:1)	83 (4:1) 67 (5:1)	111 (3:1) 83 (4:1)

^*) Figures inside the brackets are gear ratios of gearboxes. (1:1) represents direct input from motor to electric cylinders.
^*) This chart is for reference only. To ensure safety, please limit the motor torque if the rated force exceeds the cylinder's permissible force.
^*) Motors not listed above can also be selected. Contact us for more information.
