Electric Cylinder / LDE Series

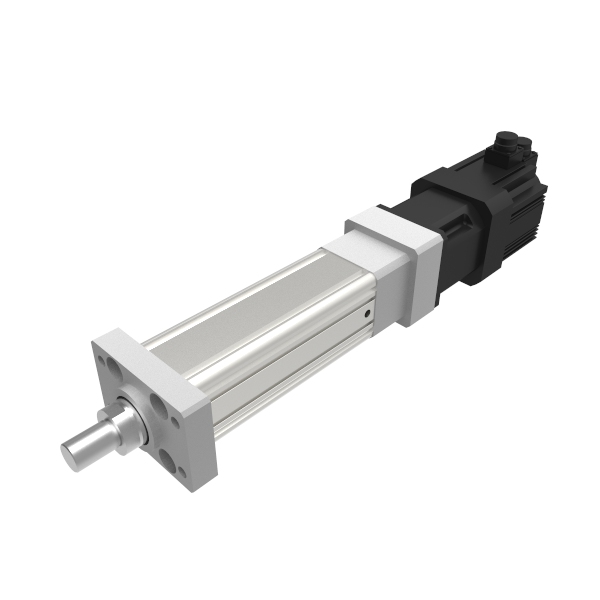

Electric Cylinder - LDE63

Maximum Force 1,000 kgf
Features
Maximum force 1,000 kgf.
High axial load rigidity.
Aluminum body, lightweight design.
High precision driven by ball screws.
Integrated anti-rotation device.
Applicable to all brands of servo motors and planetary gearboxes.

Description

The LDE Series Electric Cylinder is a modular product that incorporates a ball screw and anti-rotation piston rod structure. This cylinder is compatible with most servo motor brands and planetary gearboxes and finds applications in high-load, high-precision clamping, press assembly, and riveting. It also provides an energy-efficient and cost-effective alternative to hydraulic cylinders.
Add Inquiry (0) Order Code - LDE63

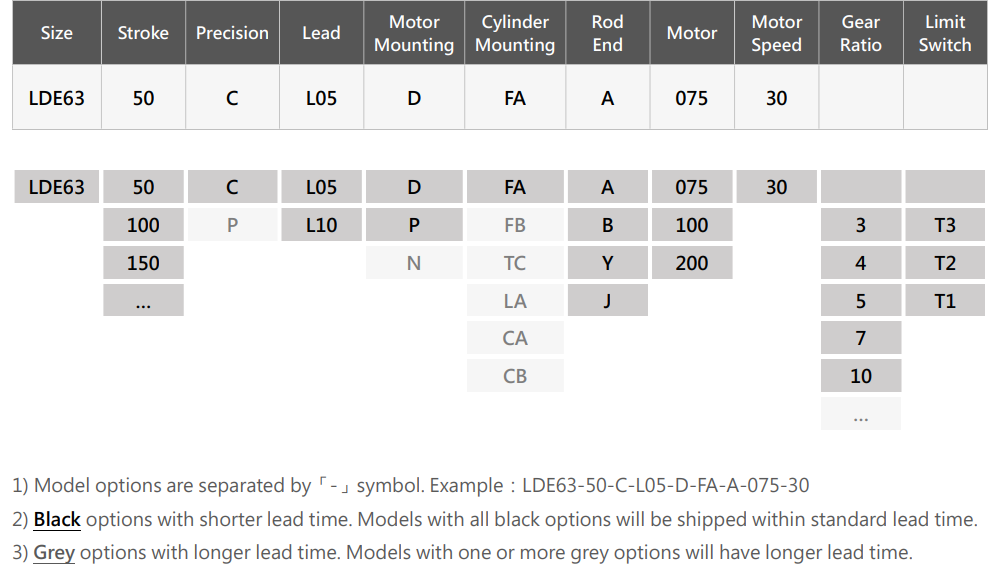

Order Code




Technical Data

Model LDE63
Permissible Force 1) kgf Extension 1000 / Retraction 1000
Stroke 2) mm 50 ~ 1000
Screw Type mm ø25 Ball Screw C7 / C5
Screw Lead mm 5 / 10
Repeatability mm ±0.02 / ±0.01
Maximum Input Speed RPM 3000
Applicable Servo Motor mm Frame size 60 / 80
Limit Switch - Magnetic Switch
1) Controlled push / pull force. Impact forces that causes sudden stop are not allowed.
2) Permissible force and speed of the electric cylinder may be limited by long stroke.


Common Motor Selection

Servo Motor 750 W (3000 RPM)
Rated Torque Nm 2.4
Screw Lead mm 5 10
Rated Force N 2553 (1:1) 7659 (6:1)
8935 (7:1)
10211 (8:1)
Rated Speed mm/s 250 (1:1) 83 (6:1)
71 (7:1)
63 (8:1)
*) Figures inside the brackets are gear ratios of gearboxes. (1:1) represents direct input from motor to electric cylinders.
*) This chart is for reference only. To ensure safety, please limit the motor torque if the rated force exceeds the cylinder's permissible force.
*) Motors not listed above can also be selected. Contact us for more information.

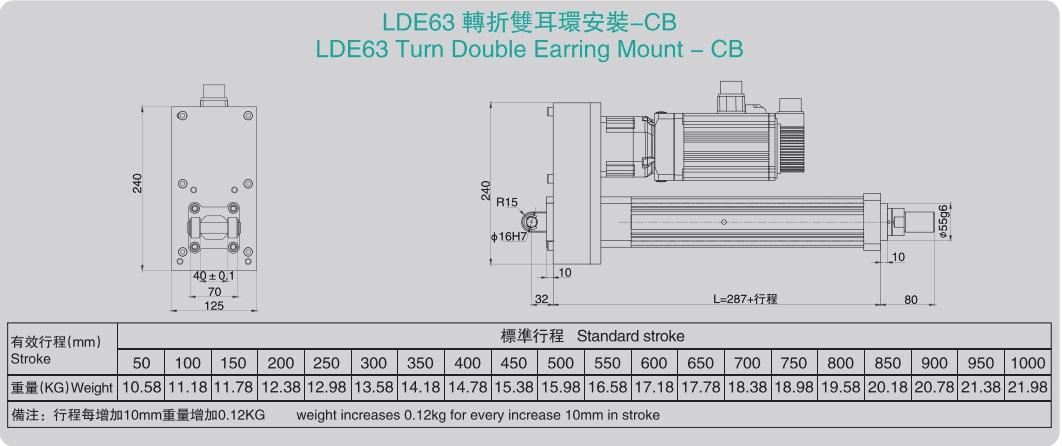

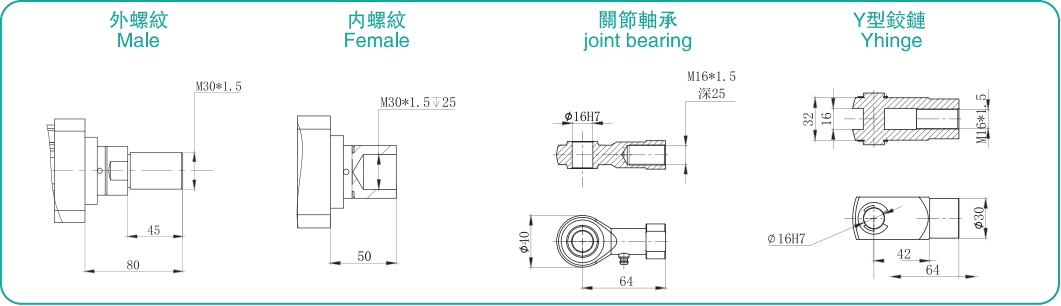

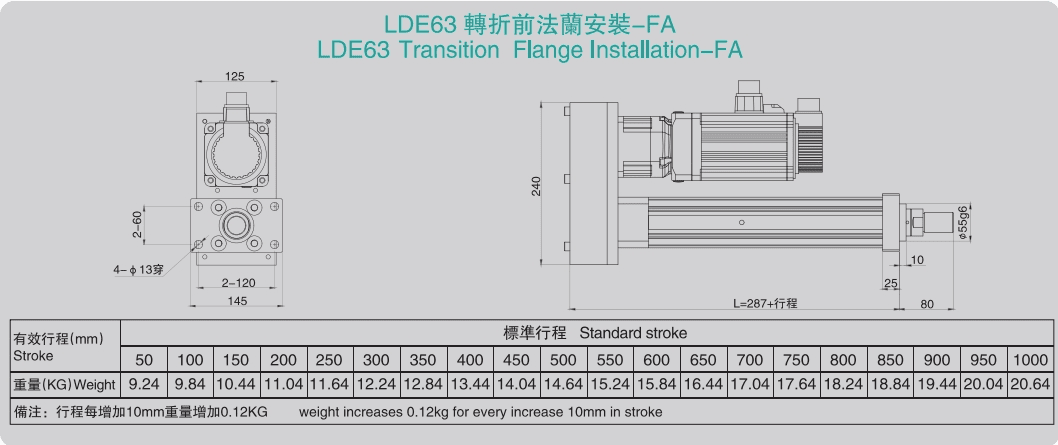

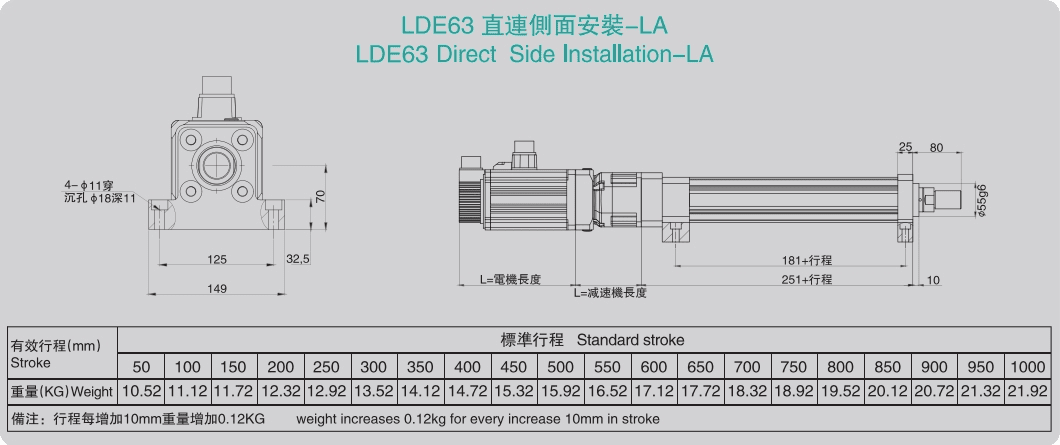

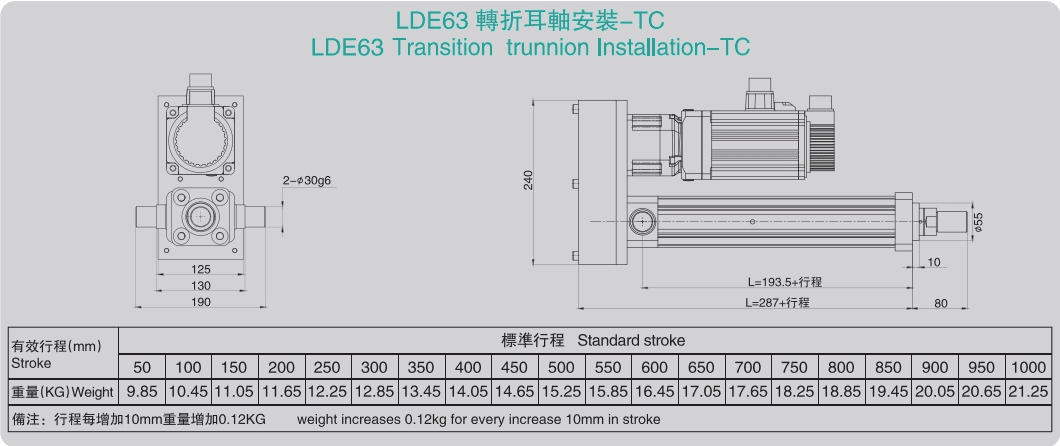

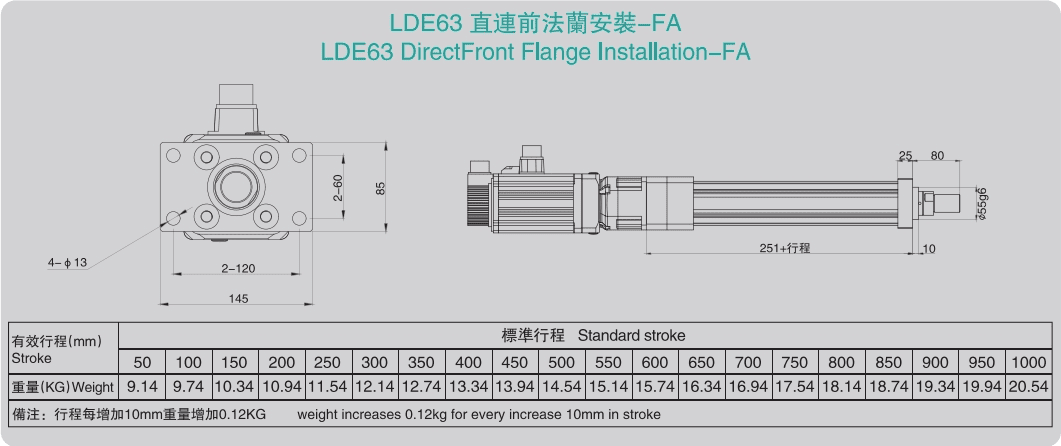

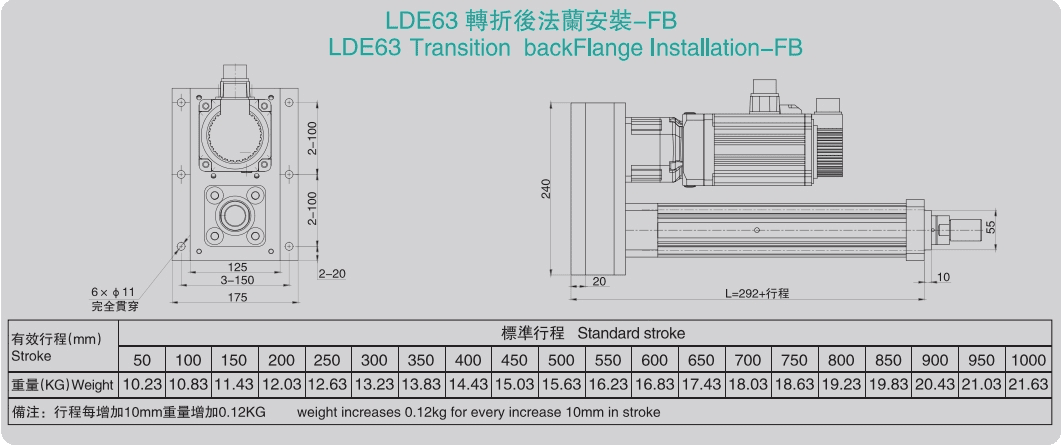

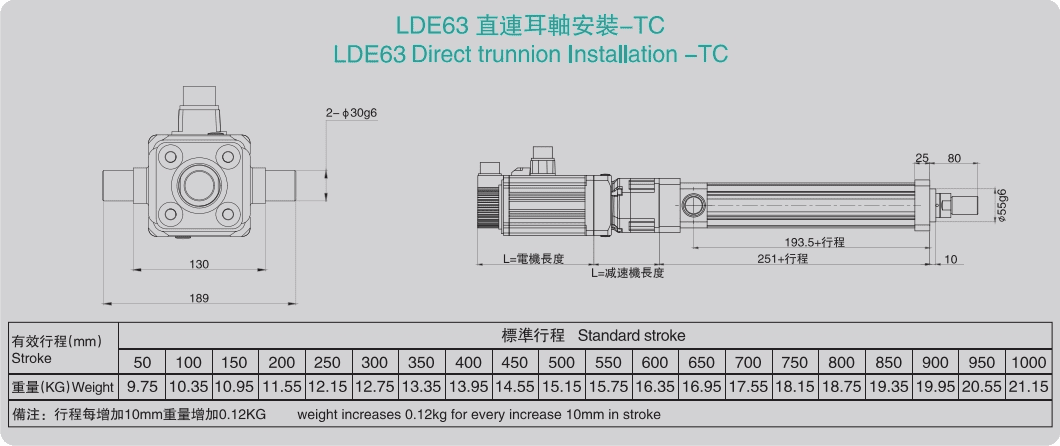

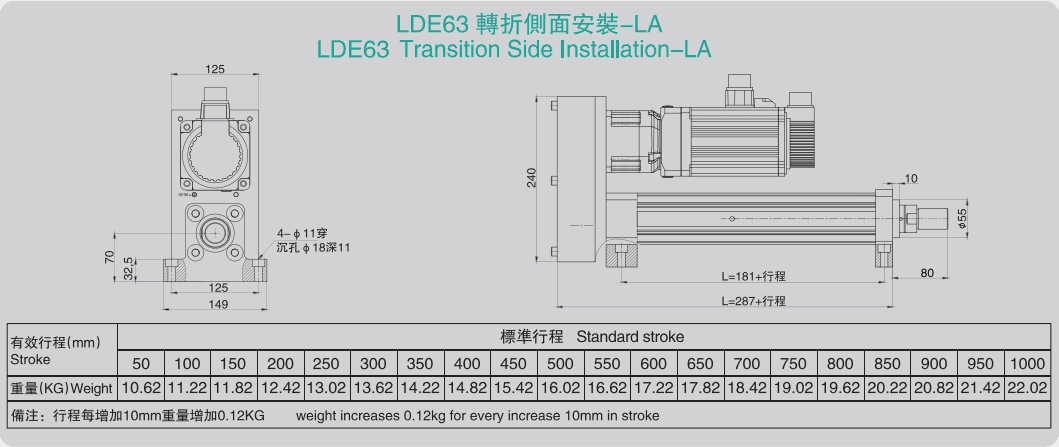

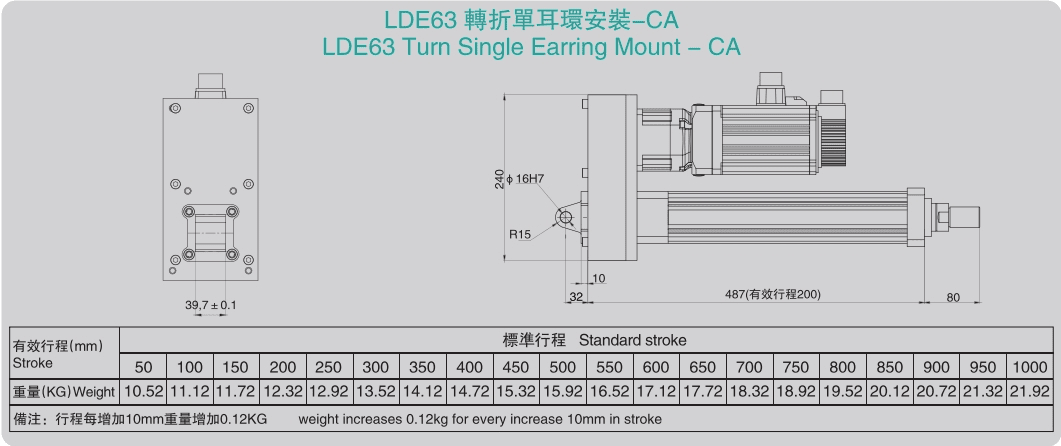

Dimensions
