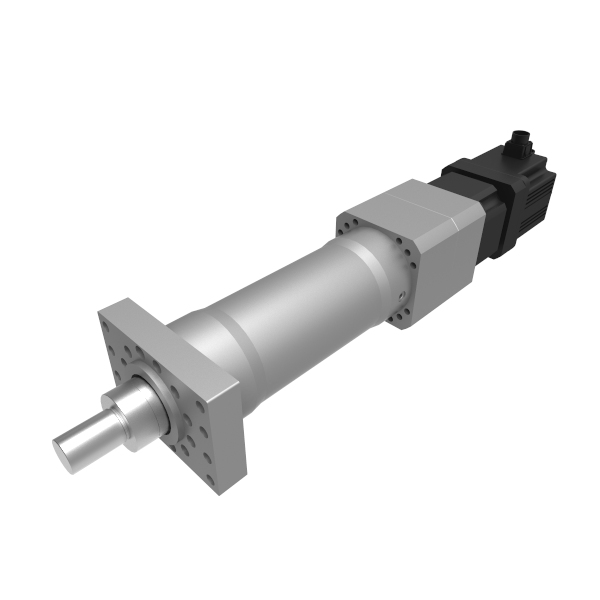

Electric Cylinder / LDC Series
Electric Cylinder - LDC150
Maximum Force 20,000 kgf- Features
- Maximum force 20,000 kgf.
- High axial load rigidity.
- Carbon steel rugged design.
- High precision driven by ball screws.
- Integrated anti-rotation device.
- Applicable to all brands of servo motors and planetary gearboxes.
Description

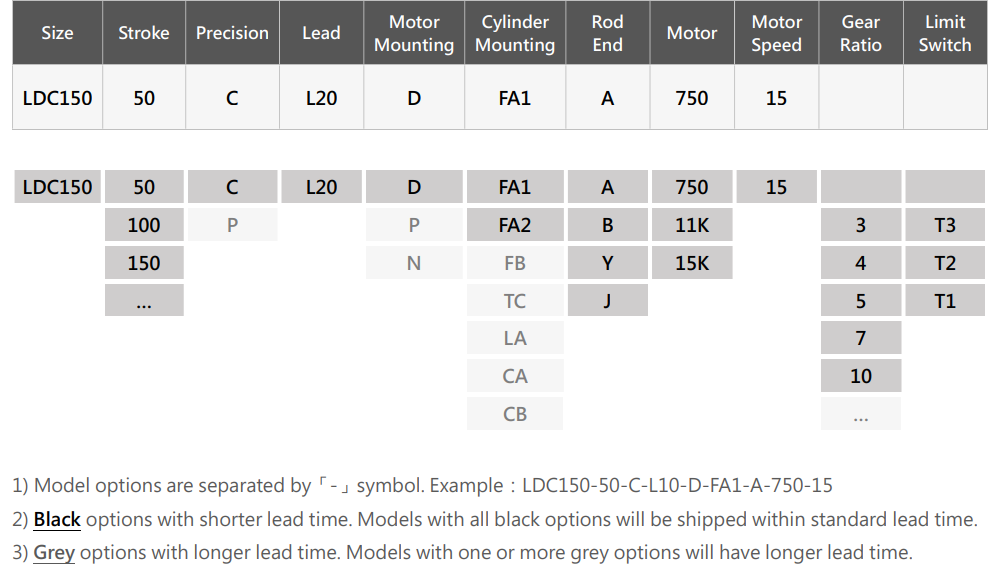

The LDC Series Electric Cylinder is a modular product that incorporates a ball screw and anti-rotation piston rod structure. This cylinder is compatible with most servo motor brands and planetary gearboxes and finds applications in high-load, high-precision clamping, press assembly, and riveting. It also provides an energy-efficient and cost-effective alternative to hydraulic cylinders.Order Code
Technical Data
| Model | LDC150 | |
|---|---|---|
| Permissible Force 1) | kgf | Extension 20000 / Retraction 20000 |
| Stroke 2) | mm | 50 ~ 2000 |
| Screw Type | mm | ø63 Ball Screw C7 / C5 |
| Screw Lead | mm | 20 |
| Repeatability | mm | Inline ±0.02 / Parallel ±0.05 |
| Maximum Input Speed | RPM | 3000 |
| Applicable Servo Motor | mm | Frame size 180 / 220 |
| Limit Switch | - | Proximity Switch |
2) Permissible force and speed of the electric cylinder may be limited by long stroke.
Common Motor Selection
| Servo Motor | 7500 W (1500 RPM) | 11000 W (1500 RPM) | 15000 W (1500 RPM) | |
|---|---|---|---|---|
| Rated Torque | Nm | 47.74 | 70 | 95.4 |
| Screw Lead | mm | 20 | 20 | 20 |
| Rated Force | N | 127483 (10:1) 191224 (15:1) |
130847 (7:1) 186925 (10:1) |
178326 (7:1) |
| Rated Speed | mm/s | 50 (10:1) 33 (15:1) |
71 (7:1) 50 (10:1) |
71 (7:1) |
*) This chart is for reference only. To ensure safety, please limit the motor torque if the rated force exceeds the cylinder's permissible force.
*) Motors not listed above can also be selected. Contact us for more information.

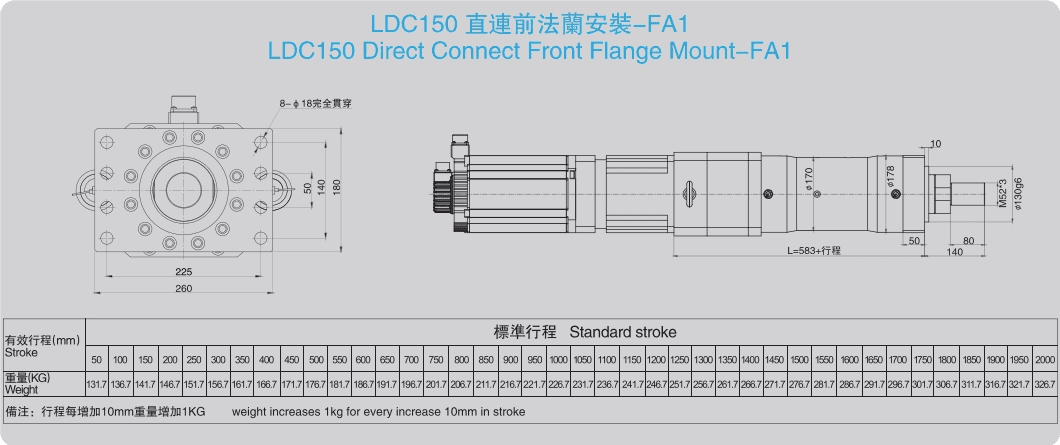

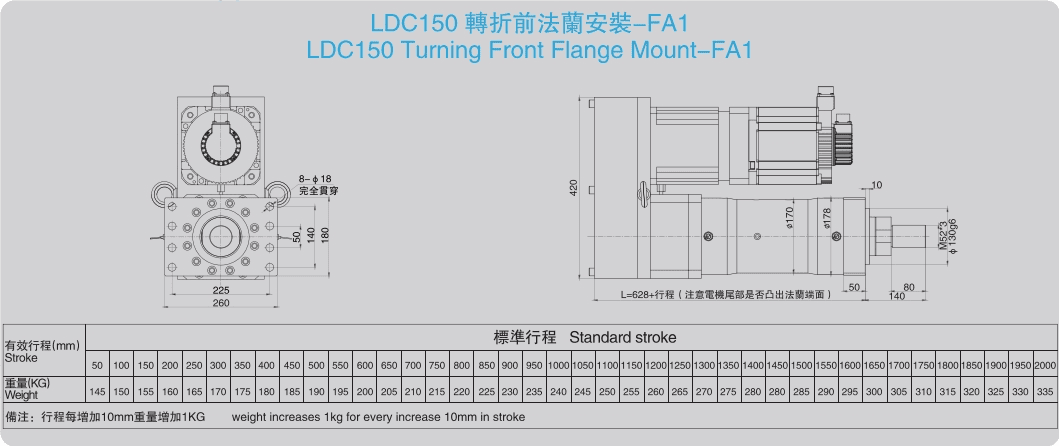

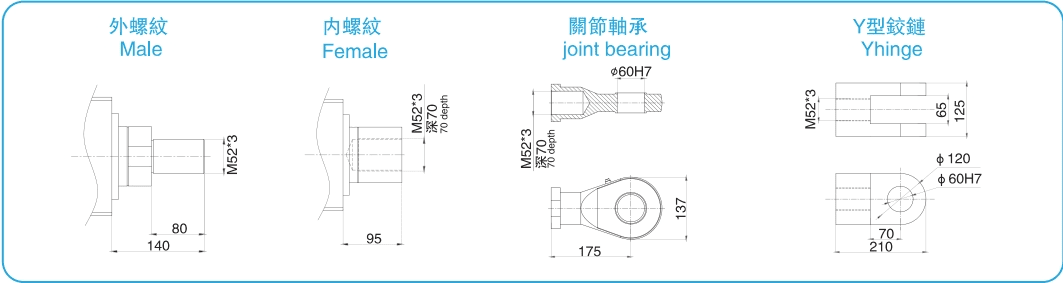

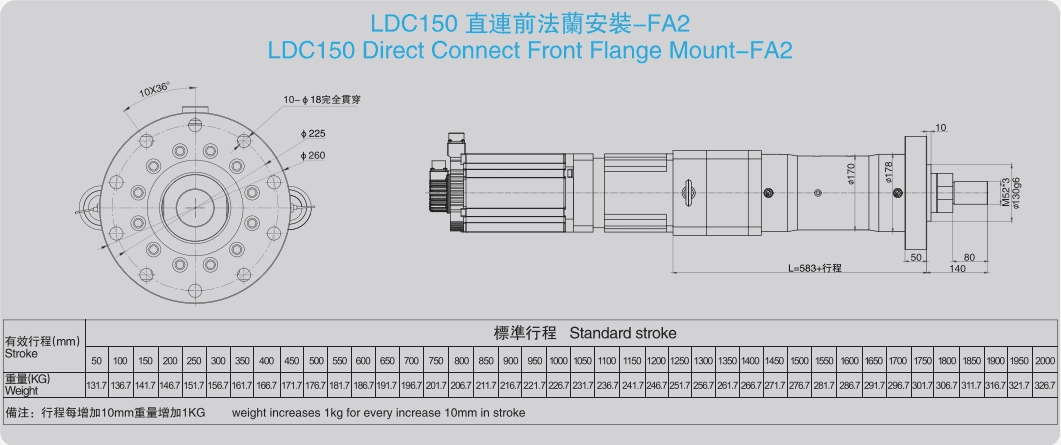

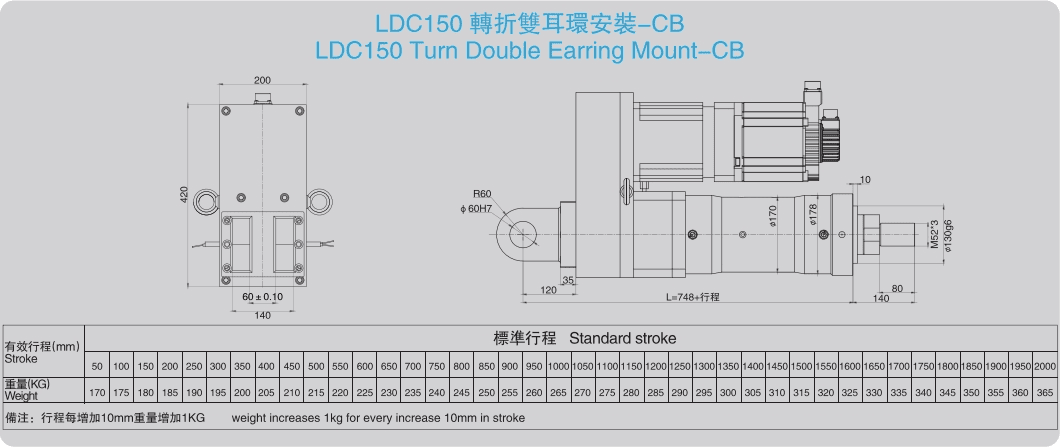

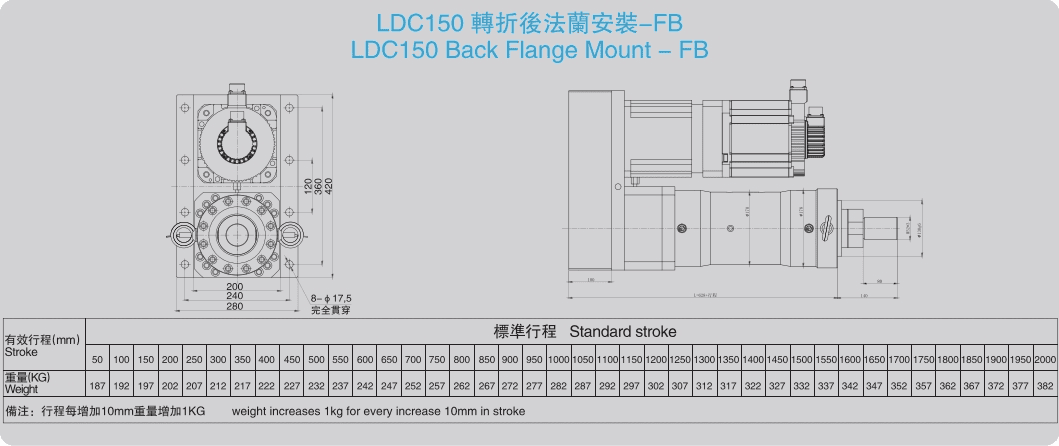

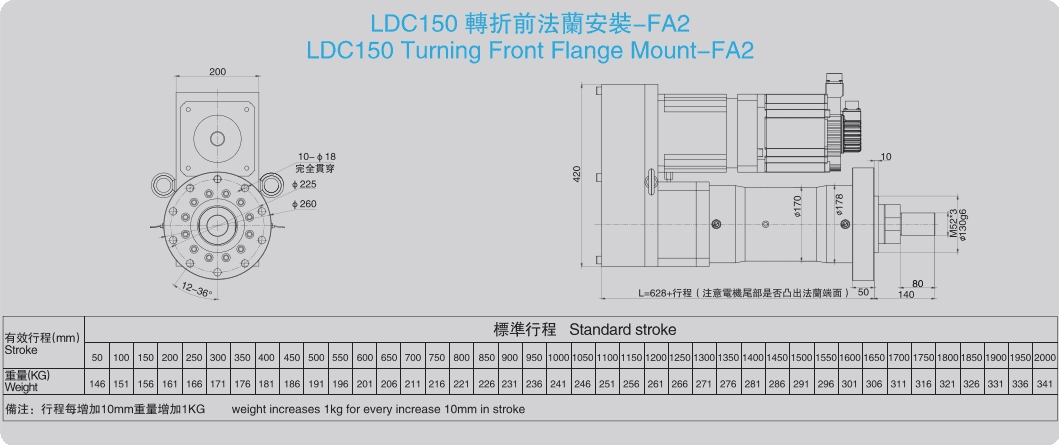

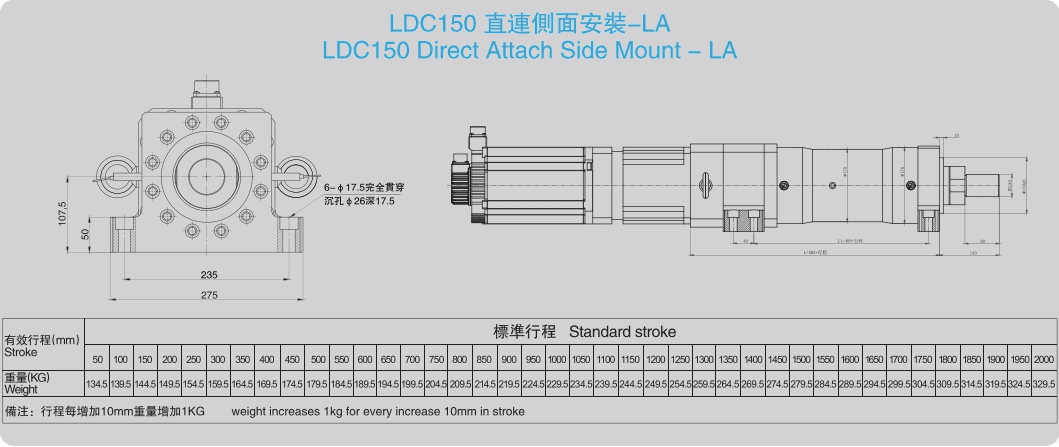

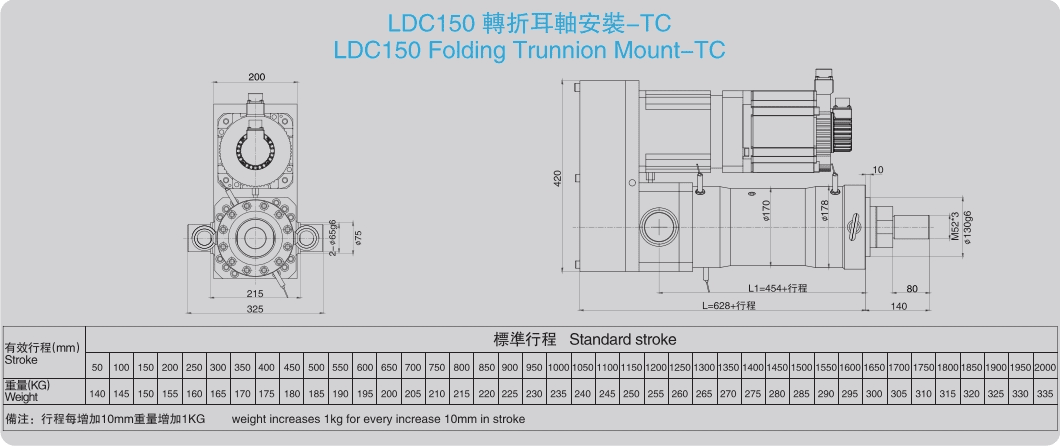

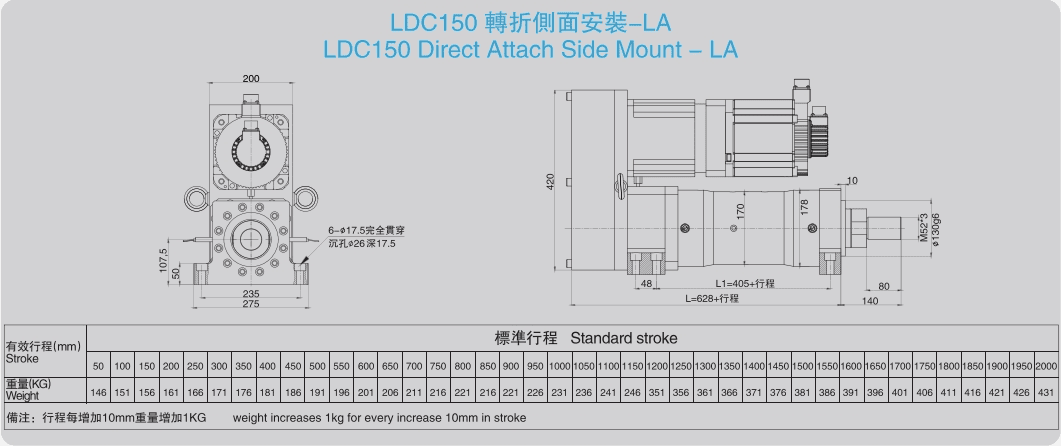

Dimensions
