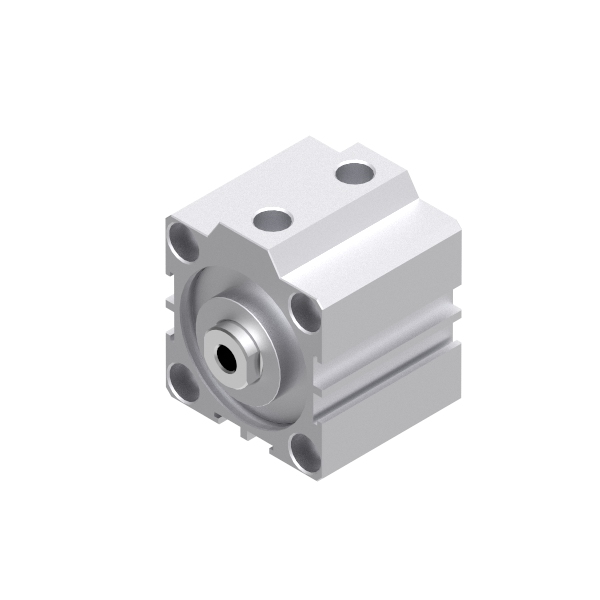

Single Rod Type - WJ Series

Bore ø20~100

Features: High Quality, Long Life; Smooth acting at both high & low speed; Wide variety of mountings; Magnet type is available for sensors

Add Inquiry (0) Order Code - WJ

Product Series		WJ Series
Cylinder Bore	mm	20	25	32	40	50	63	80	100
Max. Stroke	mm	50		100
Standard Stroke	mm	5, 10, 15 ... 50
Fluid	-	Compressed Air – Filtered & Lubricated
Operating Pressure	kg/cm²	1 ~ 7
Ambient Temperature	℃	-0 ~ +60
Sensor	-	Magnetic Switch
