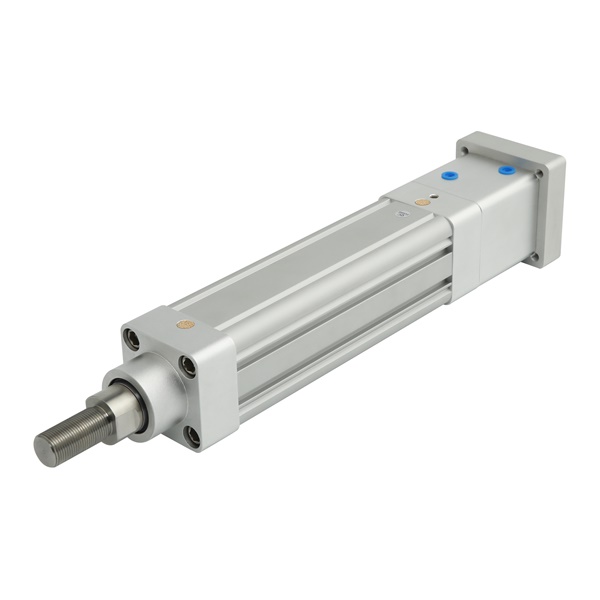

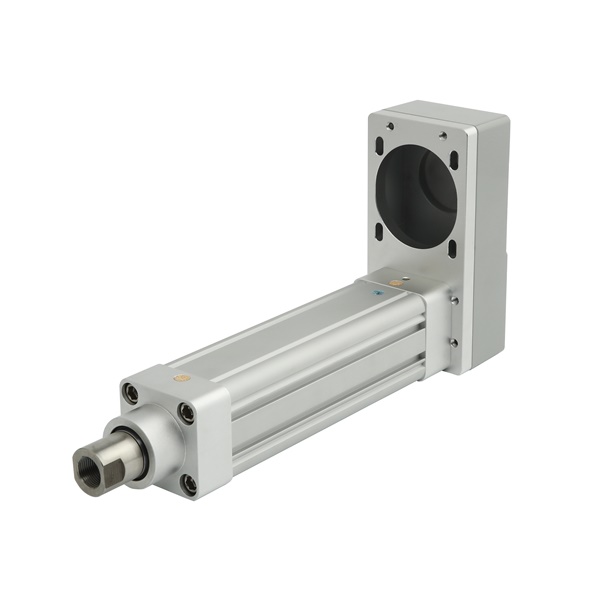

- Electric Cylinder - LOE50
Electric Cylinder / LOE Series
Electric Cylinder - LOE50
Maximum Force 200 kgf- Features
- Maximum force 200 kgf.
- High power density.
- Aluminmum body, lightweight design.
- High precision driven by ball screws.
- Integrated anti-rotation device.
- Limit switches can be consealed in the profile.
- Applicable to all brands of servo motors.
Description
The LOE Series Electric Cylinder is a modular product that incorporates a ball screw and anti-rotation piston rod structure. The LOE Cylinder is suitable for installing most brands of servo motors and planetary gearboxes. It is primarily used in applications such as high-speed linear motion control, low-thrust parts assembly, pressing, and push/pull processes. Alternatively, it can easily replace pneumatic and hydraulic cylinders, offering a more energy-efficient and cost-effective solution.Technical Data
| Model | LOE50 | |
|---|---|---|
| Permissible Force 1) | kgf | Extension 200 / Retraction 200 |
| Stroke 2) | mm | 50 ~ 800 |
| Screw Type | mm | ø16 Ball Screw C7 / C5 |
| Screw Lead | mm | 5 / 10 |
| Repeatability | mm | ±0.02 / ±0.01 |
| Maximum Input Speed | RPM | 3000 |
| Applicable Servo Motor | mm | Frame size 60 / 80 |
| Limit Switch | - | Magnetic Switch |
2) Permissible force and speed of the electric cylinder may be limited by long stroke.
Electric Cylinder Rated Force and Speed
| Servo Motor | 400 W (3000 RPM) | 750 W (3000 RPM) | |||
|---|---|---|---|---|---|
| Rated Torque | Nm | 1.27 | 2.4 | ||
| Screw Lead | mm | 5 | 10 | 5 | 10 |
| Rated Force | N | 1360 (1:1) | 680 (1:1) 2040 (3:1) |
2562 (1:1) | 1281 (1:1) |
| Rated Speed | mm/s | 250 (1:1) | 500 (1:1) 167 (3:1) |
250 (1:1) | 500 (1:1) |
2) This chart is for reference only. If the force exceeds permissible force of the cylinder, please limit the torque of motor for safety.
3) Motor combinations not listed above can also be chosen. Please contact us for more model selection.

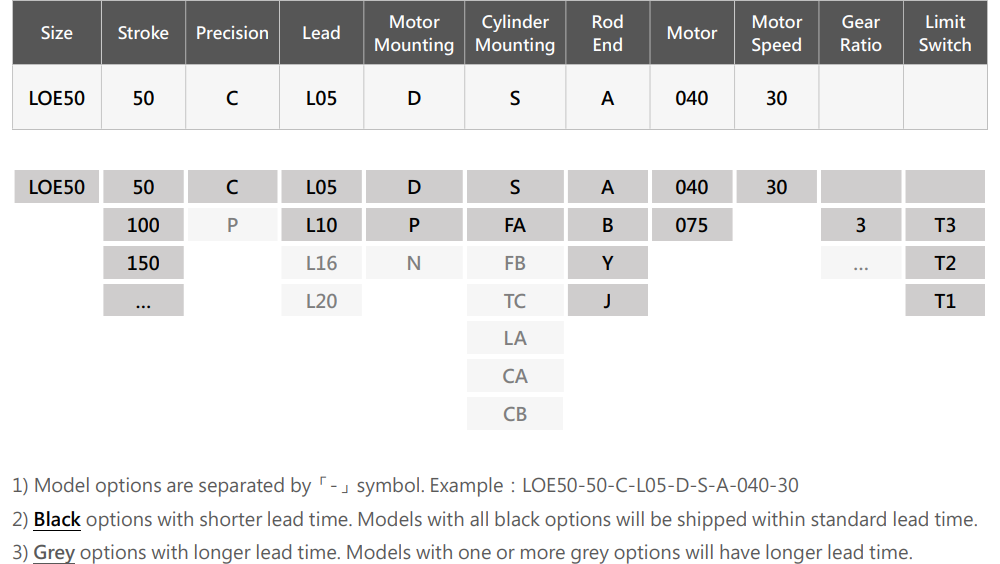

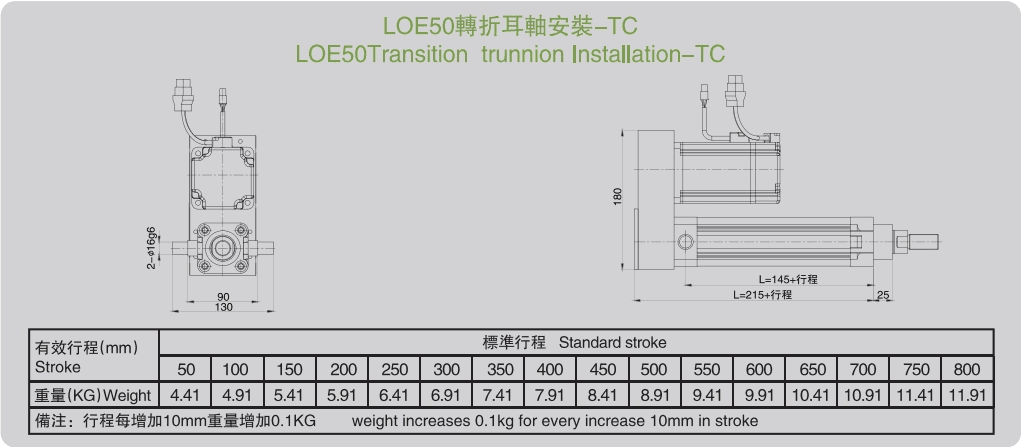

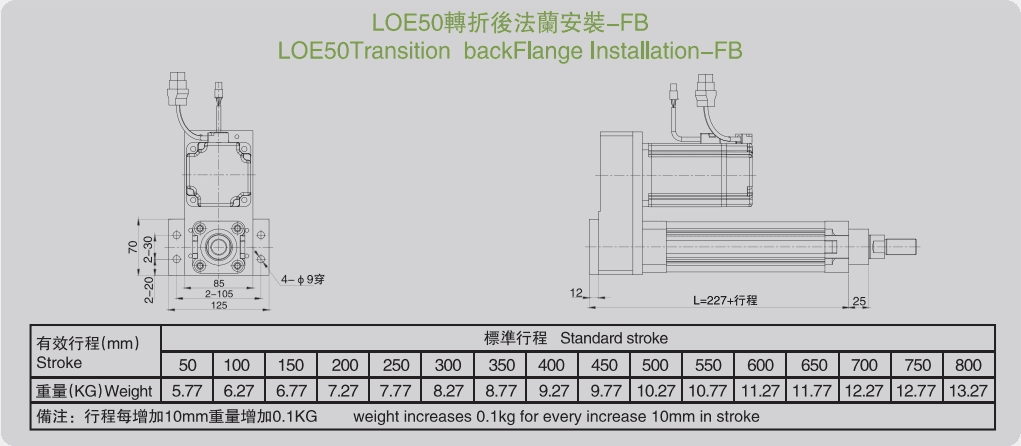

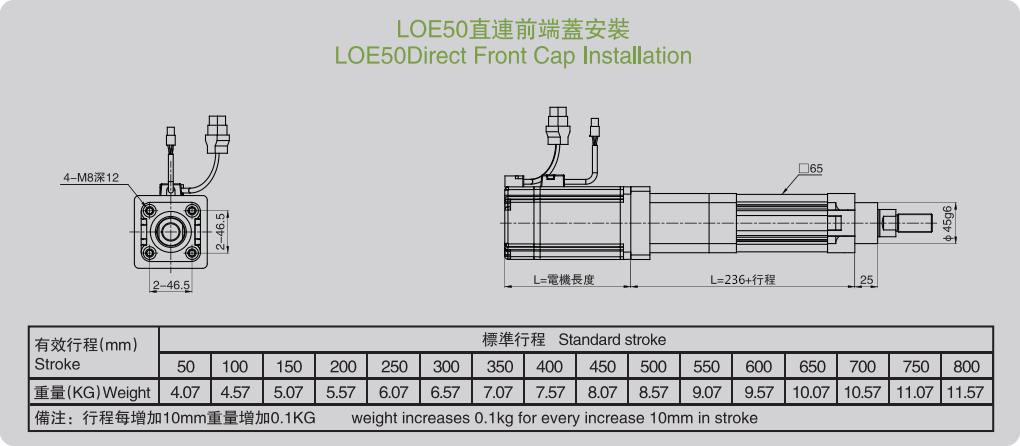

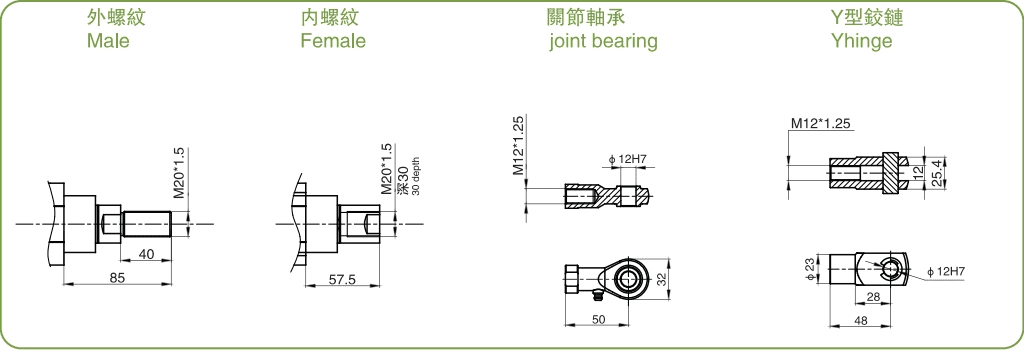

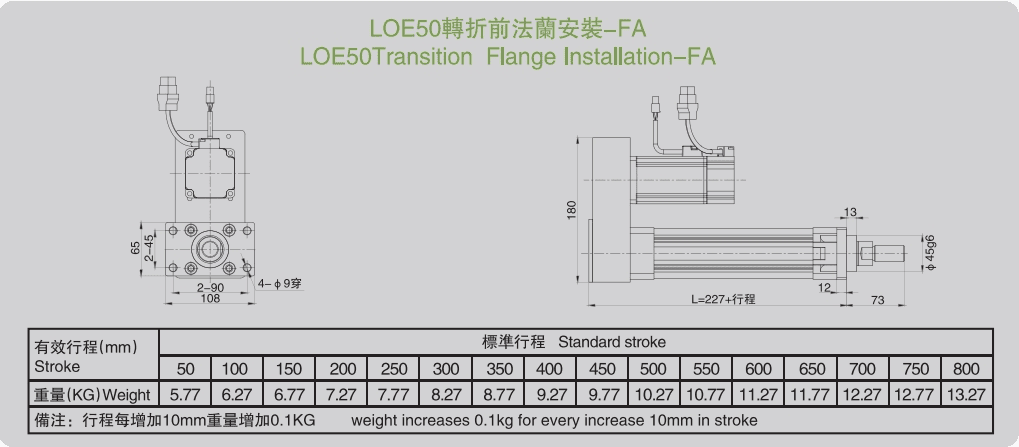

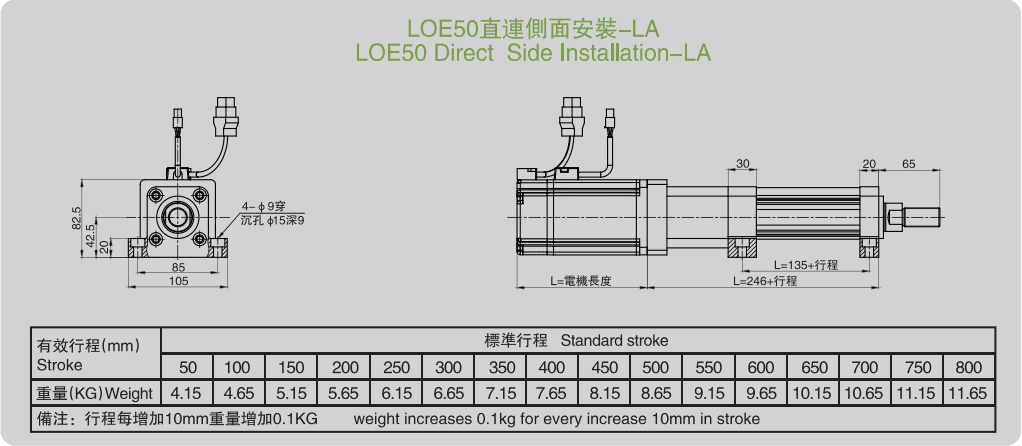

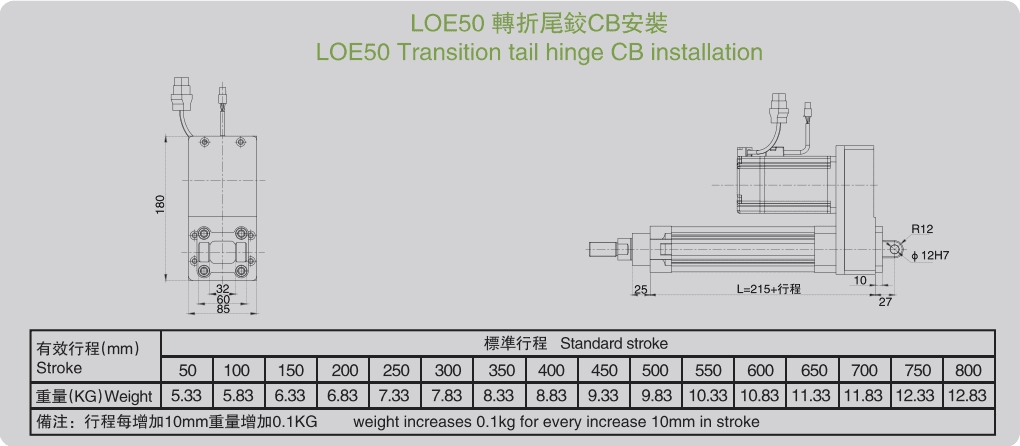

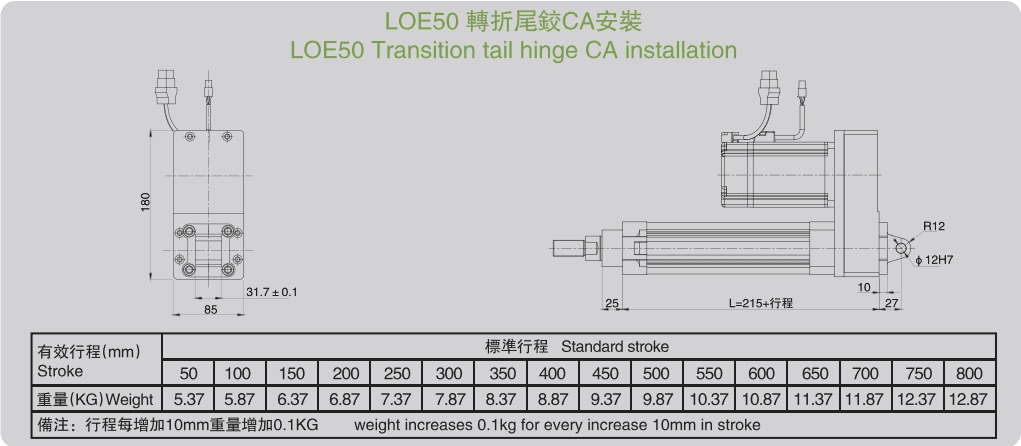

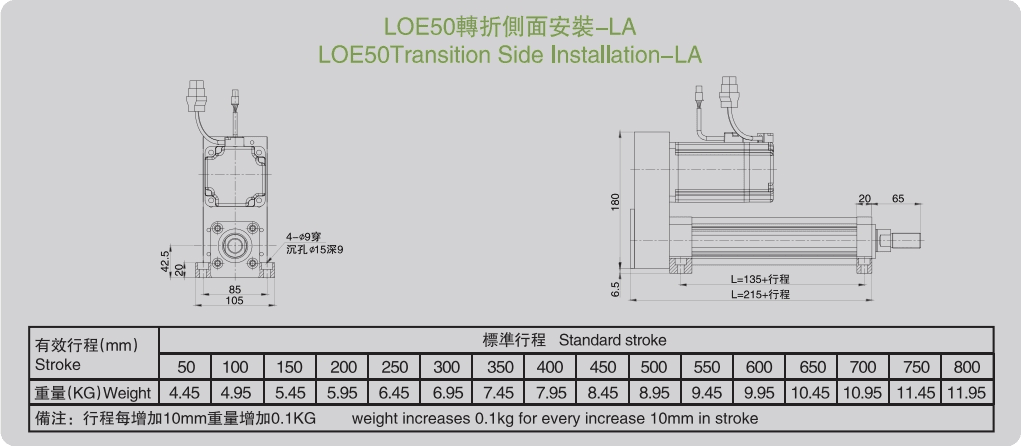

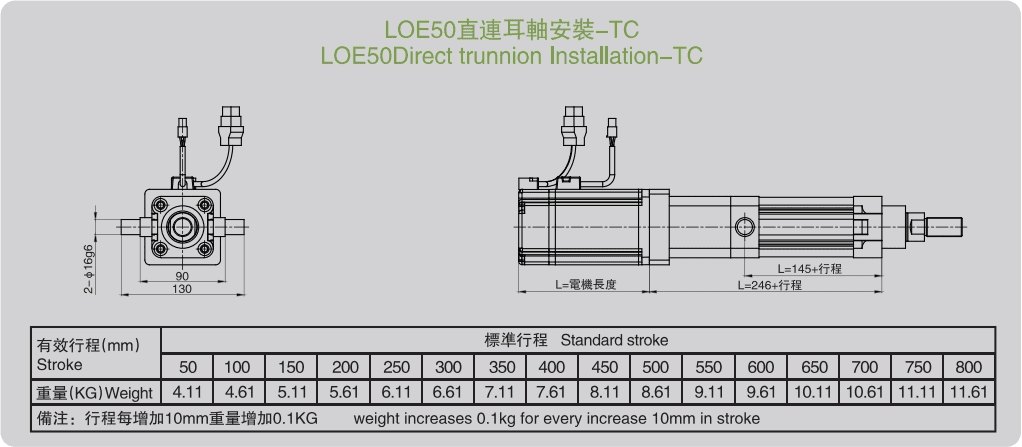

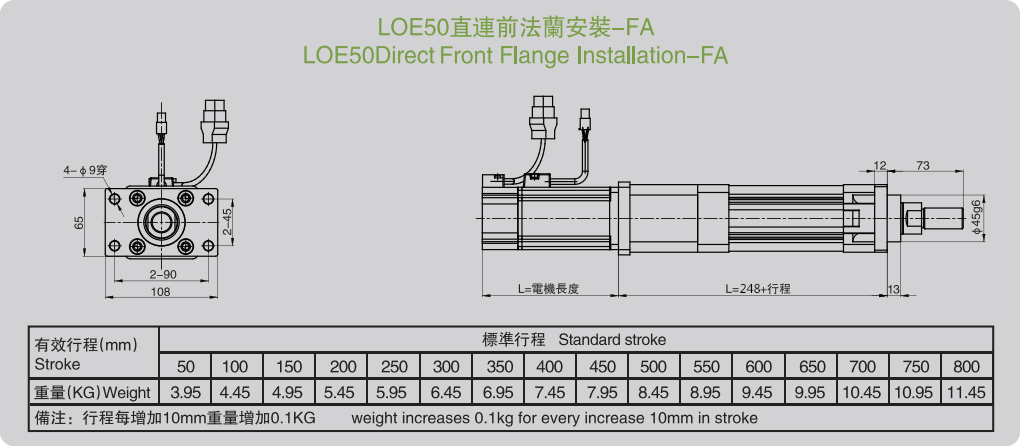

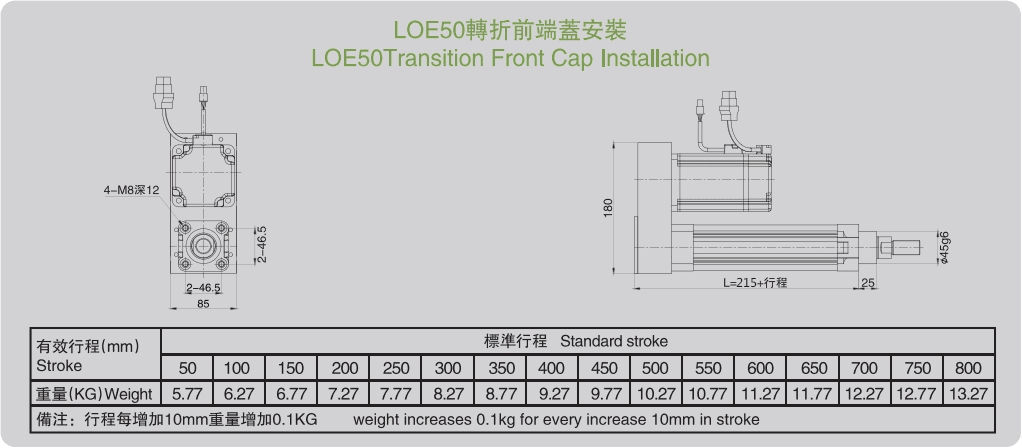

Dimensions
