Electric Cylinder / LDE Series

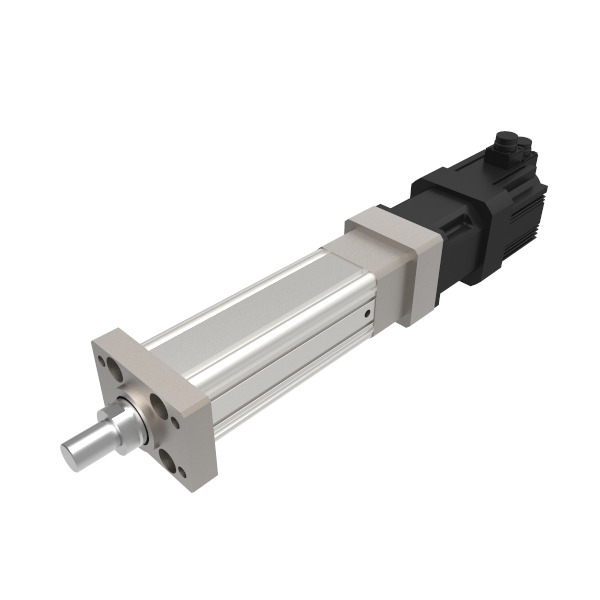

Electric Cylinder - LDE80
Maximum Force 3,000 kgf- Features
- Maximum force 3,000 kgf.
- High axial load rigidity.
- Carbon steel rugged design.
- High precision driven by ball screws.
- Integrated anti-rotation device.
- Applicable to all brands of servo motors and planetary gearboxes.
Description
The LDE Series Electric Cylinder is a modular product that incorporates a ball screw and anti-rotation piston rod structure. This cylinder is compatible with most servo motor brands and planetary gearboxes and finds applications in high-load, high-precision clamping, press assembly, and riveting. It also provides an energy-efficient and cost-effective alternative to hydraulic cylinders.Technical Data
| Model | LDE80 | |
|---|---|---|
| Permissible Force 1) | kgf | Extension 3000 / Retraction 3000 |
| Stroke 2) | mm | 50 ~ 1600 |
| Screw Type | mm | ø32 Ball Screw C7 / C5 |
| Screw Lead | mm | 10 |
| Repeatability | mm | ±0.02 / ±0.01 |
| Maximum Input Speed | RPM | 3000 |
| Applicable Servo Motor | mm | Frame size 100 / 130 |
| Limit Switch | - | Proximity Switch |
2) Permissible force and speed of the electric cylinder may be limited by long stroke.
Electric Cylinder Rated Force and Speed
| Servo Motor | 1500 W (2000 RPM) | 2000 W (3000 RPM) | 2000 W (2000 RPM) | |
|---|---|---|---|---|
| Rated Torque | Nm | 7.16 | 6.37 | 9.55 |
| Screw Lead | mm | 10 | 10 | 10 |
| Rated Force | N | 26768 (7:1) 30592 (8:1) |
23814 (7:1) 30618 (9:1) |
25502 (5:1) 30602 (6:1) |
| Rated Speed | mm/s | 48 (7:1) 42 (8:1) |
71 (7:1) 56 (9:1) |
67 (5:1) 56 (6:1) |
2) This chart is for reference only. If the force exceeds permissible force of the cylinder, please limit the torque of motor for safety.
3) Motor combinations not listed above can also be chosen. Please contact us for more model selection.

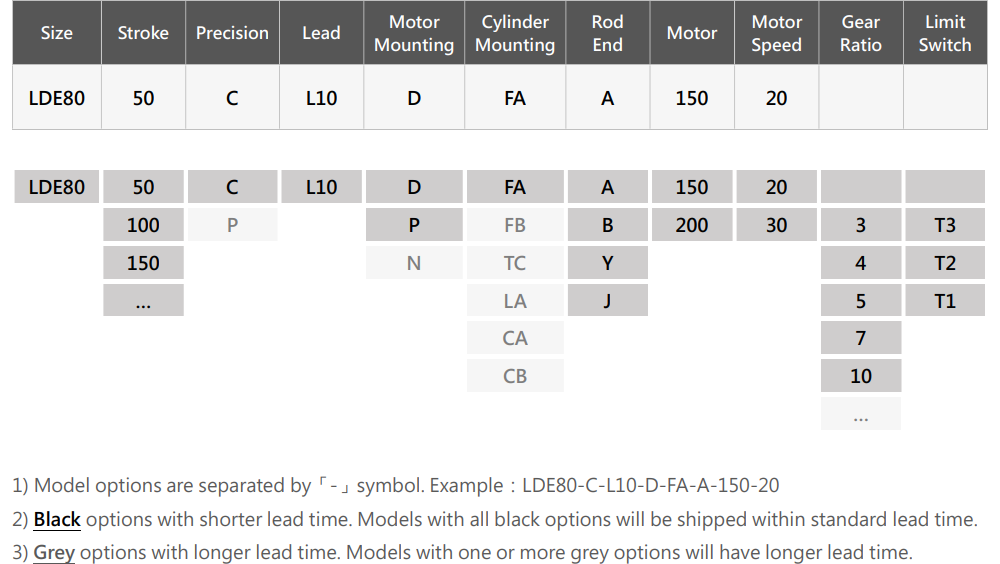

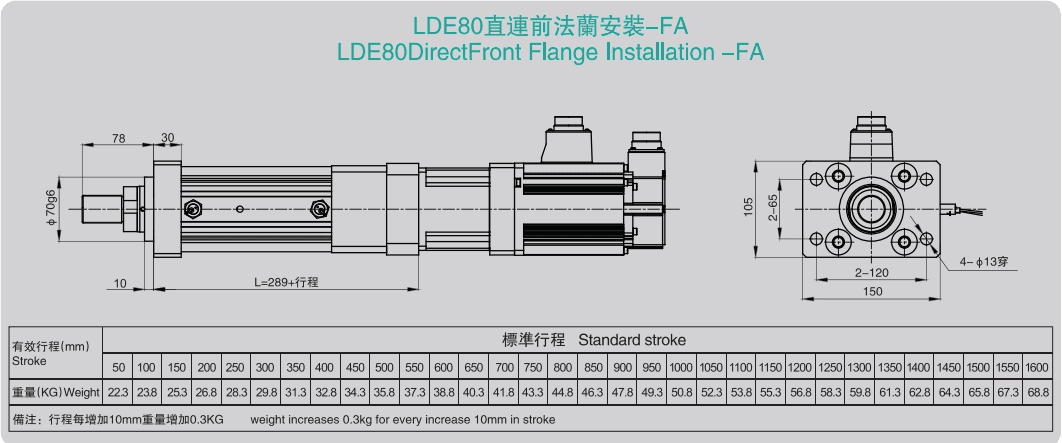

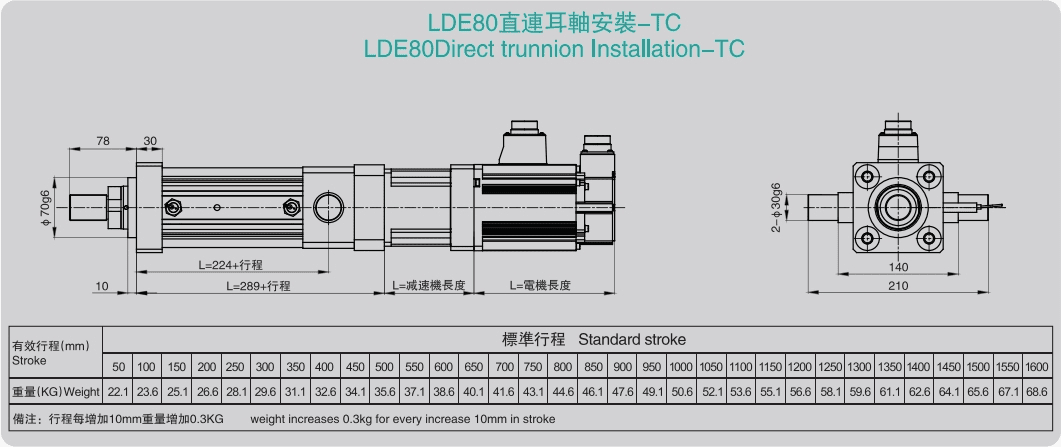

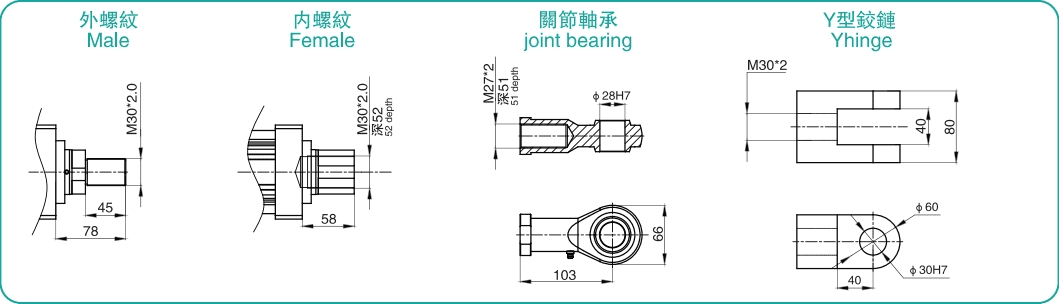

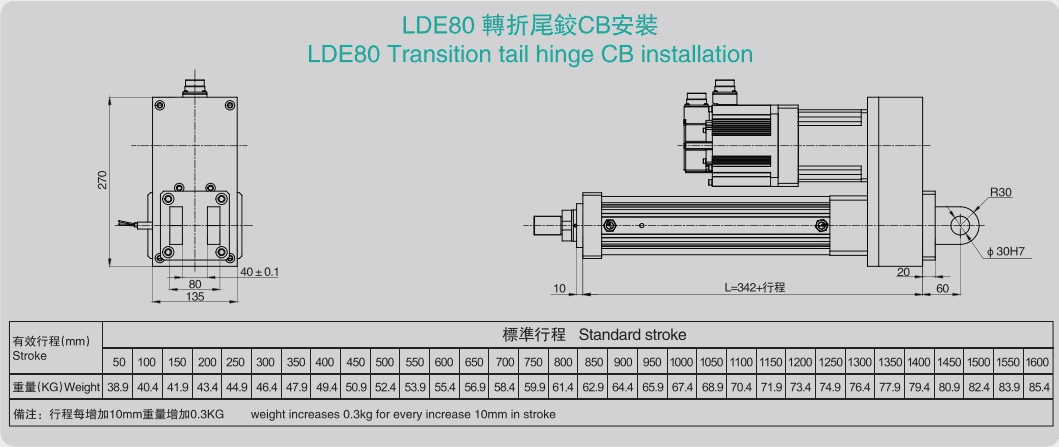

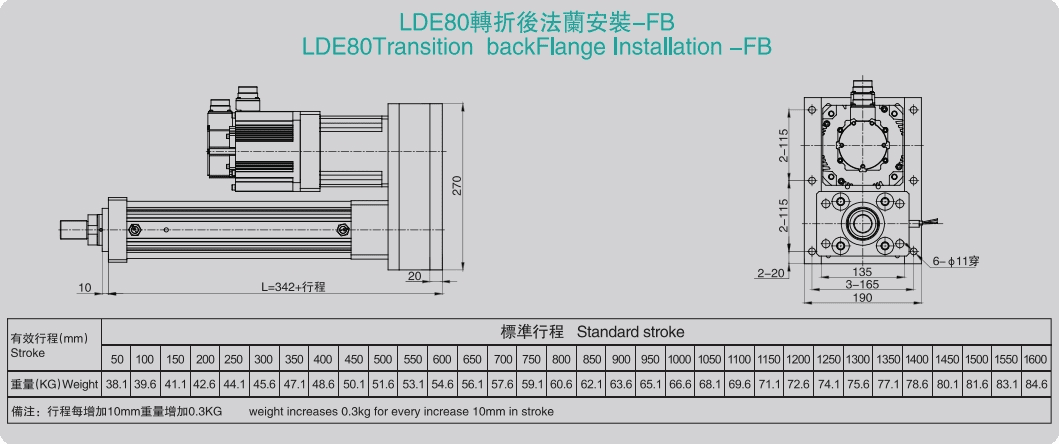

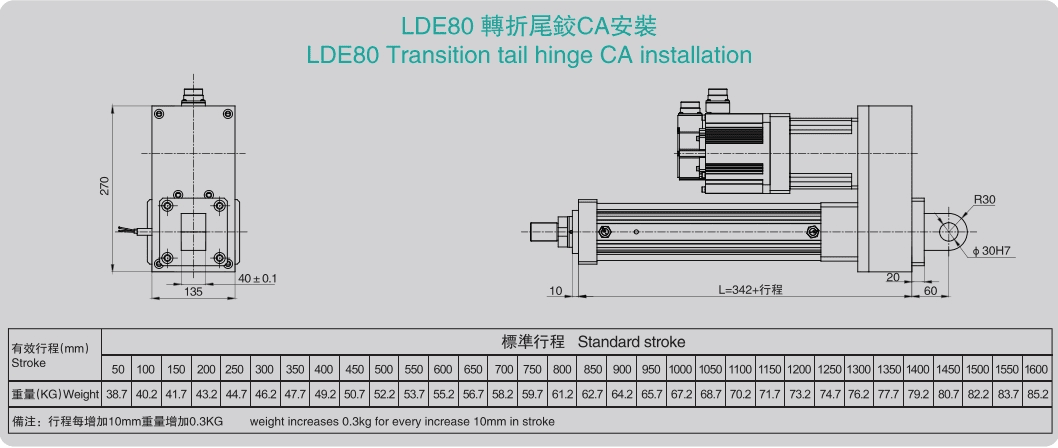

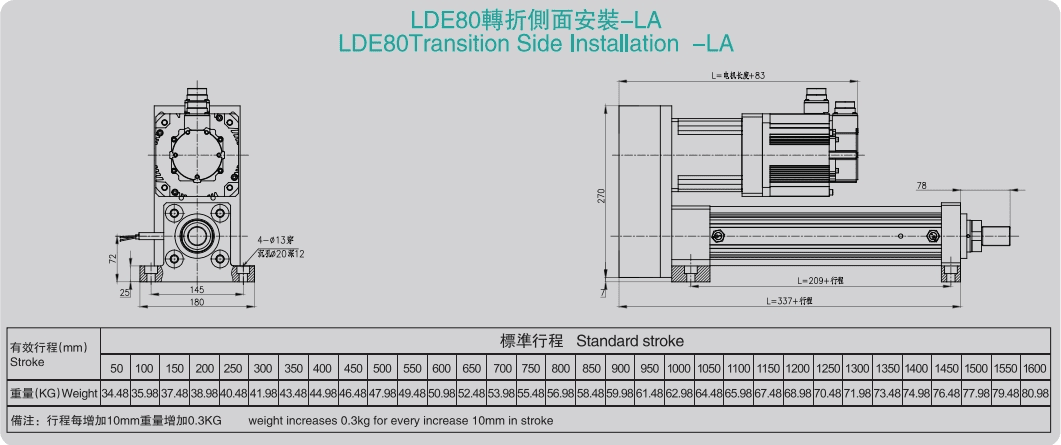

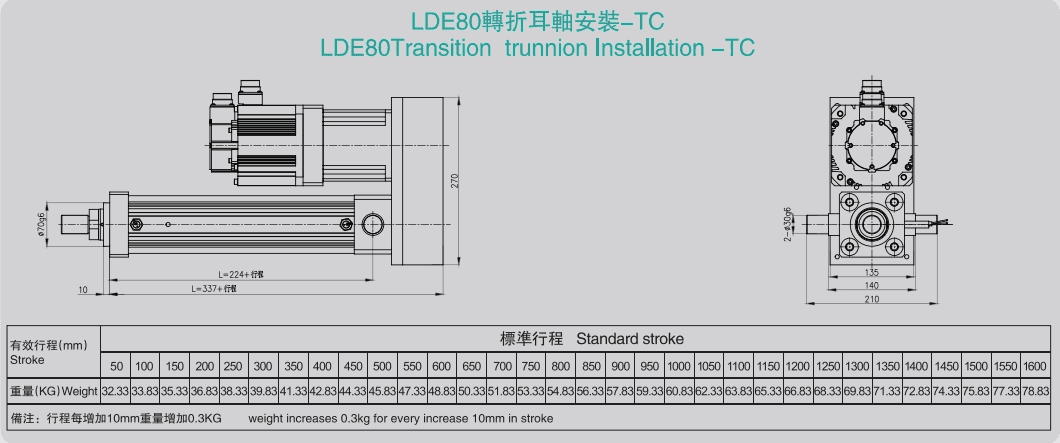

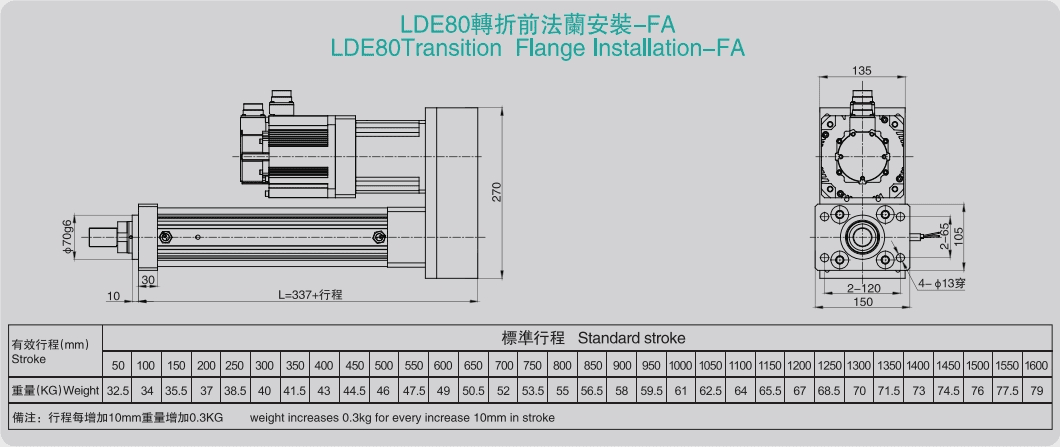

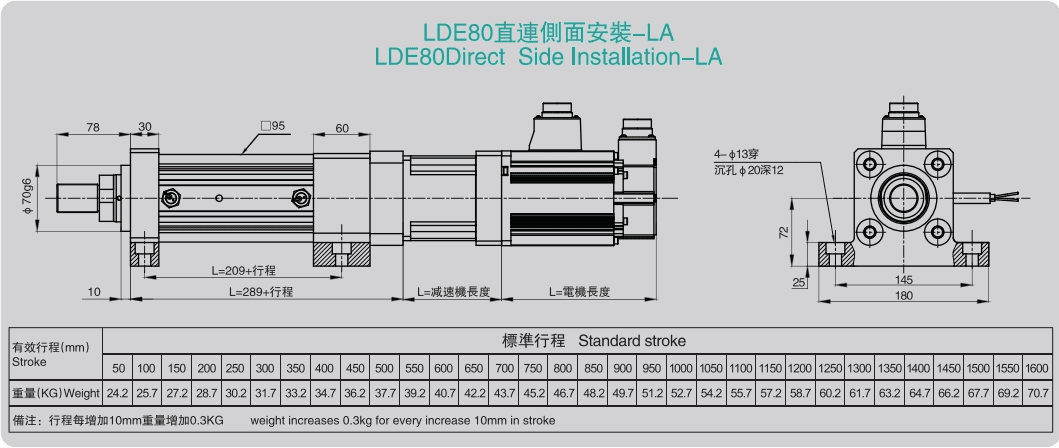

Dimensions
